Name: ACI A/MCS-A
Brand: ACI
SKU: CS6285392
Availability: OutOfStock

SKU: CS6285392MPN: A/MCS-AAlternate Part #: 117854

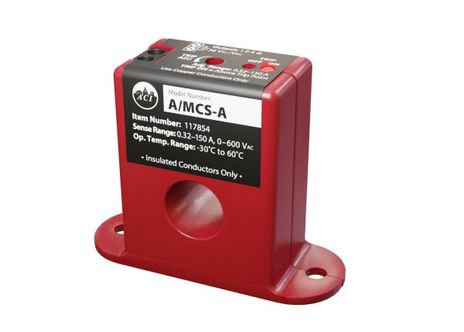

Mini, Adjustable Current Switch, Solid Core, NO, 0.32 to 150A Range,Trip point

Product Details

Mini, Adjustable Current Switch, Solid Core, NO, 0.32 to 150A Range,Trip point

Product Configuration

Core Type	Solid Core

Product Family Specifications

Wire Size	16 to 22 AWG (1.31 mm2 to 0.33 mm2) Copper Wires only

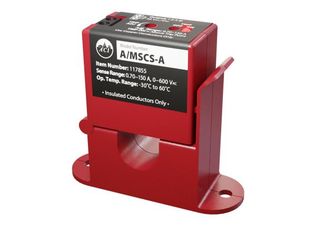

Core Style	Solid-Core and Split-Core Versions available (See Ordering Grid)
Hysteresis	10% Trip Point, typical
Contact Type	Normally-Open “N/O”
Sensor Power	Induced from the Monitored Conductor (Insulated Conductors only)
Aperture Size	0.53” (13.46 mm)
Response Time	A/MCS-A: \< 90 mS, typical \| A/MSCS-A: \< 45 mS typical
Amperage Range	See Ordering Grid
Product Weight	A/MCS-A: 0.15 lbs. (0.068 kg) \| A/MSCS-A: 0.20 lbs. (0.091 kg)
Agency Approvals	UL/CUL US Listed (UL 916) Energy Management Equipment (File # E334792), CE, RoHS2, WEEE
Isolation Voltage	2200 VAC
Maximum AC Voltage	600 VAC

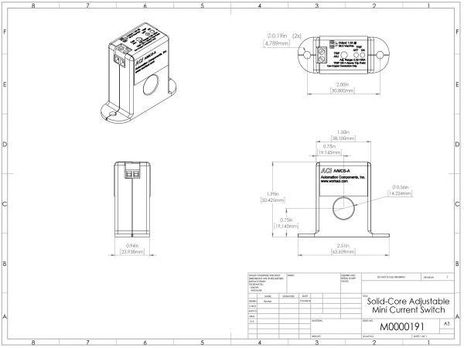

Product Dimensions	A/MCS-A (Solid-Core): 2.510” (63.82 mm) x 0.940” (23.94 mm) x 2.000” (50.80 mm) A/MSCS-A (Split-Core): 2.650” (67.19 mm) x 0.940” (23.94 mm) x 2.380” (60.49 mm)
Wiring Connections	2 Position Screw Terminal Block (Not Polarity Sensitive)
Contact (Load) Rating	1A Continuous @ 36 VAC/VDC
Status LED Indication	Red LED (Current above trip point) \| Blue LED (Current below trip point)
Monitored Current Type	AC Current
Operating Humidity Range	0 to 95%, non-condensing
Minimum Mounting Distance	1” (2.6 cm) between current switch (Relays, Contactors, Transformers)
Operating Frequency Range	50/60 Hz
Operating Temperature Range	-22 to 140ºF (-30 to 60ºC)
Terminal Block Torque Rating	4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
Storage Temperature \| RH Range	41 to 95°F (5 to 35°C) \| 40% to 85% RH, non-condensing
Enclosure Material \| Flammability Rating	PC/ABS (Polycarbonate/ABS Blend) \| UL94-V0
Trip Point Style \| Adjustable Trip Point Range	Adjustable Trip Point \| See Ordering Grid
“Status” Contact “On” Resistance \| “Off” Resistance	\< 0.5 Ohms (tripped) \| > 1 Meg Ohms (Open)
