Name: ACI A/ASCSX2
Brand: ACI
SKU: CS6288646
Availability: OutOfStock

SKU: CS6288646MPN: A/ASCSX2Alternate Part #: 142370

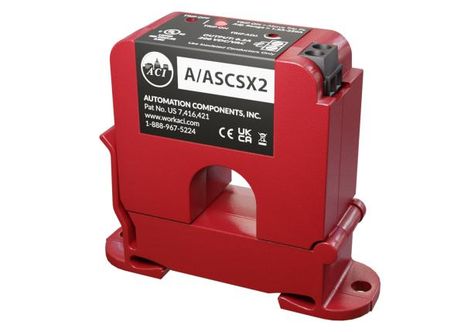

Adjustable Current Switch, DIN Rail, Split Core, NC, 1.5 to 220A Trip Point, 0 to 250A Range

Product Details

Adjustable Current Switch, DIN Rail, Split Core, NC, 1.5 to 220A Trip Point, 0 to 250A Range

Product Configuration

Core Type	Split Core
Trip Point	1.5 to 220 Amp
Contact Type	Normally Closed

Product Family Specifications

Wire Size	16 to 22 AWG (1.31 mm2 to 0.33 mm2) Copper Wires only
Core Style	Solid-Core and Split-Core Versions available (See Ordering Grid)
Hysteresis	10% of trip point, typical
Contact Type	Normally-Open “N/O” or Normally-Closed “N/C” (See ordering Grid)
Sensor Power	Induced from the Monitored Conductor
Aperture Size	0.75” (19.05 mm)
Response Time	See Response Time Table on back of data sheet
Amperage Range	See Ordering Grid
Product Weight	A/ACS2 and A/ACSX2: 0.216 lbs. (0.097 kg) \| A/ASCS2: 0.270 lbs. (0.123 kg) A/ASCSX2: 0.266 lbs. (0.121 kg) \| A/ASCS2-L: 0.280 lbs. (0.127 kg)
Agency Approvals	UL/CUL US Listed (UL 508) Ind. Control Equipment (File # E309723), CE, RoHS2, WEEE
DIN Rail Mounting	35 mm (U.S. Patent No. 7,416,421)
Isolation Voltage	2200 VAC
Maximum AC Voltage	600 VAC
Product Dimensions	Solid Core Versions: 2.760” (70.11 mm) x 3.343” (84.92 mm) x 1.050” (26.67 mm) Split Core Versions: 2.780” (70.51 mm) x 3.238” (82.25 mm) x 1.120” (28.45 mm)
Wiring Connections	2 Position, Screw Terminal Block (Not Polarity Sensitive)
Status LED Indication	Red LED (Current above Trip Point) \| Blue LED (Current Below Trip Point)
Monitored Current Type	AC Current
Operating Humidity Range	0 to 95%, non-condensing
Minimum Mounting Distance	1” (2.6 cm minimum) between current switch (Relays, Contactors, Transformers)
Operating Frequency Range	40 to 1 kHz
Operating Temperature Range	5 to 104ºF (-15 to 40ºC)
“Status” Contact Rating	0.2A @ 200 VAC/VDC
Terminal Block Torque Rating	4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
Trip Point Style \| Trip Point	Adjustable Trip Point \| See Ordering Grid
Storage Temperature \| RH Range	41 to 95°F (5 to 35°C) \| 40% to 85% RH, non-condensing
Enclosure Material \| Flammability Rating	PC/ABS (Polycarbonate/ABS Blend) \| UL94-V0
“Status” Contact “On” Resistance \| “Off” Resistance	\< 10 Ohms (tripped) \| > 1 Meg Ohms (Open)
