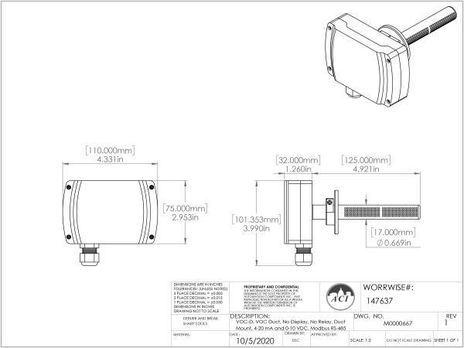

ACI VOC-D

Name: ACI VOC-D
Brand: ACI
SKU: CS6290171
Availability: OutOfStock

SKU: CS6290171MPN: VOC-DAlternate Part #: 147637

VOC, Duct Mount, 0-1000 ppb, 4-20 mA and 0-10 VDC, Modbus RS-485

Product Details

VOC, Duct Mount, 0-1000 ppb, 4-20 mA and 0-10 VDC, Modbus RS-485

Sensor Type	Metal Oxide Semiconductor
Warm Up Time	15 minutes
Response Time	\<5 seconds
Sensing Range	0-1000 ppb TVOC (Isobutene)
Product Weight	Room: \~190g \| Duct: \~270g
Supply Current	LCD: 50mA \| Non-LCD: 33mA
Supply Voltage	16-28VAC/16-35VDC (Reverse Polarity Protection)
Agency Approvals	CE
Relay (Optional)	1 SPDT, N.O. rated 3A @ 30VDC, 3A @ 250VAC
Relay Trip Point	230 ppb
Enclosure Protection	IP30 (Room) \| IP65 (Duct) \| IP30 (Probe)
Communication Protocol	Modbus RTU; EIA RS-485
Output/Load Resistance	4-20 mA: 500 Ohms maximum (Default) \| 0-10 VDC: 2K Ohms minimum
Connections \| Wire Size	Screw Terminal Blocks/16 AWG (1.31 mm2) to 22 AWG (0.33 mm2)
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	-4 to 140°F (-20 to 60°C)
Operating Temperature Range	32 to 122°F (0 to 50°C)
Terminal Block Torque Rating	0.45 lb-in (0.5 Nm) nominal
Enclosure Material \| Flammability Rating	ABS Plastic/UL94V-0
