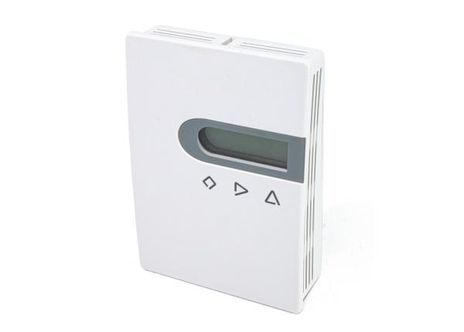

ACI PM-R-LCD

Name: ACI PM-R-LCD
Brand: ACI
SKU: CS6290173
Availability: OutOfStock

SKU: CS6290173MPN: PM-R-LCDAlternate Part #: 147639

PM2.5, Room Mount, 0-500u g/m3, Relay, LCD, 4-20 mA and 0-10 VDC, Modbus RS-485

Product Details

PM2.5, Room Mount, 0-500u g/m3, Relay, LCD, 4-20 mA and 0-10 VDC, Modbus RS-485

Relay	1 x SPDT

Accuracy	+/- 10 µ g/m3 @ 0 \~ 100 µ g/m3, +/- 10% reading @ 100 \~ 500/600 µg/m3 @ 25°C/50%RH
Resolution	1 µg/m3
Sensor Type	Laser particulate matter sensor
Service Life	MTBF more than 3 years in continuous service mode, service life up to 8-10 years in auto (intermittent) service mode
Warm Up Time	15 minutes
Response Time	In continuous service mode, sample time \<1s, response time \<10s
Sensing Range	PM2.5: 0 \~ 500 µ g/m3 \| PM10: 0 \~ 600 µg/m3
Product Weight	Room: \~200g \| Duct: \~270g
Supply Current	LCD: 50mA \| Non-LCD: 33mA
Supply Voltage	16-28VAC/16-35VDC (Reverse Polarity Protection)
Sampling Method	Fan
Agency Approvals	CE
Relay Trip Point	100 (Factory set), user adjustable
Operating RH Range	0 to 95% RH, non-condensing
Enclosure Protection	IP30 (Room) \| IP65 (Duct) \| IP30 (Probe)
Communication Protocol	Modbus RTY; EIA RS-485
Detected Particle Size	PM2.5: 0.3 \~ 2.5 µm \| PM10: 0.3 \~ 10 µm
Output Load Resistance	4-20 mA: 500 Ohms maximum (Default) \| 0-10 VDC: 2K Ohms minimum
Connections \| Wire Size	Screw Terminal Blocks/16 AWG (1.31 mm2) to 22 AWG (0.33 mm2
Storage Temperature Range	-30 to 70°F (-34 to 21°C)
Relay (Room with LCD Only)	1 SPDT, N.O. rated 3A @ 30VDC, 3A @ 250VAC
Operating Temperature Range	32 to 122°F (0 to 50°C)
Terminal Block Torque Rating	: 0.45 lb-in (0.5 Nm) nominal
Enclosure Material \| Flammability Rating	ABS Plastic/UL94V-0
