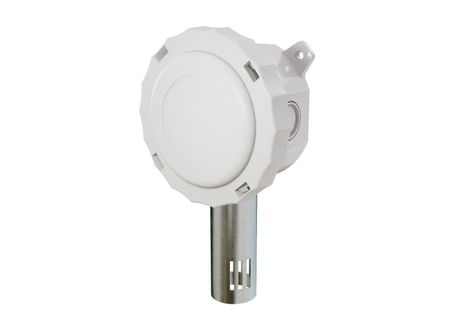

ACI BN2120-O

Name: ACI BN2120-O
Brand: ACI
SKU: CS6289606
Availability: OutOfStock

SKU: CS6289606MPN: BN2120-OAlternate Part #: 146543

BACnet MS/TP, Modbus RTU, Relative Humidity Sensor, Outside, Euro Enclosure

Product Details

BACnet MS/TP, Modbus RTU, Relative Humidity Sensor, Outside, Euro Enclosure

Product Configuration

Category	Humidity

Product Family Specifications

Resolution	+/- 0.1º \| +/- 0.1%
Product Weight	0.72 lbs. (0.33 kg)
Supply Current	25 mA maximum (0.67 VA)
Supply Voltage	12 to 36 VDC / 24 VAC +/- 10%, 50/60 Hz (Reverse Polarity Protected)
Agency Approvals	BTL Certified, CE, RoHS2, WEEE, China RoHS
Maximum Distance	4000 ft (1219 m)
Temperature Units	ºF (Factory Default), ºC, ºK (Field Configurable)
Operating RH Range	10 to 95% RH, non-condensing
Output Update Rate	4 seconds
Product Dimensions	7.00” (177.8 mm) x 5.00” (127 mm) x 3.00” (76.2 mm)
Network Addressable	0 \= Factory Default \| 1-127 \= Field Selectable
RH Measurement Range	+/- 2% from 10 to 90% RH
Supported Baud Rates	Auto Baud (Factory Default) \| 9600, 19200, 38400, 57600, 76800, 115200 (Field Selectable)
Tri-Color Status LED	Connection Status
RH Calibration Offset	+/- 10% RH (Field Configurable)
Communication Protocol	BACnet™ MS/TP or Modbus RTU \= Field Selectable; EIA RS-485
Connections \| Wire Size	Screw Terminal Blocks \| 16 AWG (1.31 mm2) to 22 AWG (0.33 mm2)
Accuracy @ 77°F (25°C)	+/- 1.0 ºF (+/- 0.5ºC)
Storage Temperature Range	-40 to 185ºF (-40 to 85ºC)
RH Sensing Tube \| Diameter	Aluminum \| 1.125” (28.58 mm)
Enclosure Temperature Rating	-40 to 190ºF (-40 to 88ºC)
Temperature Measurement Range	-40 to 176ºF (-40 to 80ºC)
Temperature Calibration Offset	+/- 9ºF (+/- 5ºC) (Field Configurable)
Temperature Sensing Tube Diameter	Polycarbonate / ASA with UV Protectant \| 0.86“ (21.85 mm)
End of Line Termination Resistance	120 Ohms Termination Resistance (Field Selectable)
Modbus Data Bits / Parity / Stop Bit	8 Data Bits \| None/Even/Odd \= Field Selectable \| 1 or 2\= Field Selectable
Transmitter Operating Temperature Range	-40 to 176ºF (-40 to 80ºC)
Enclosure Material \| Flammability Rating	Polycarbonate / ASA with UV Protectant \| UL94-V0
