ACI BN2130-SP

Name: ACI BN2130-SP
Brand: ACI
SKU: CS6289595
Availability: OutOfStock

SKU: CS6289595MPN: BN2130-SPAlternate Part #: 146530

BACnet MS/TP, Modbus RTU, Relative Humidity and Temperature, Wall Plate, SS

Product Details

BACnet MS/TP, Modbus RTU, Relative Humidity and Temperature, Wall Plate, SS

Product Configuration

Category	Humidity and Temperature

Product Family Specifications

Resolution	+/- 0.1º \| +/- 0.1%
Product Weight	0.235 lbs. (0.107 kg)
Supply Current	25 mA maximum (0.67 VA)
Supply Voltage	12 to 36 VDC / 24 VAC +/- 10%, 50/60 Hz (Reverse Polarity Protected)
Agency Approvals	BTL Certified, CE, RoHS2, WEEE, China RoHS
Maximum Distance	4000 ft (1219 m)
Temperature Units	ºF (Factory Default), ºC, ºK (Field Configurable)
Output Update Rate	4 seconds

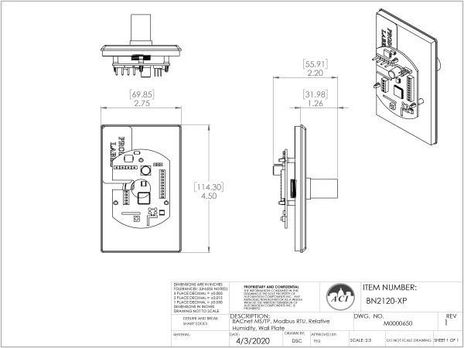

Product Dimensions	4.51” (114.56 mm) x 2.76” (70.10 mm) x 1.25” (31.75 mm)
Network Addressable	0 \= Factory Default \| 1-127 \= Field Selectable
Wall Plate Material	430 Stainless Steel (Brushed Stainless Steel Finish)
RH Measurement Range	0 to 100%
Supported Baud Rates	Auto Baud (Factory Default) \| 9600, 19200, 38400, 57600, 76800, 115200 (Field Selectable)
Tri-Color Status LED	Connection Status
RH Calibration Offset	+/- 10% RH (Field Configurable)
Communication Protocol	BACnet™ MS/TP or Modbus RTU \= Field Selectable; EIA RS-485
Connections \| Wire Size	Screw Terminal Blocks \| 16 AWG (1.31 mm2) to 22 AWG (0.33 mm2)
Accuracy @ 77°F (25°C)	+/- 1.0ºF (+/- 0.5ºC)
Foam Flammability Rating	FMVSS-302
Operating Humidity Range	10 to 95% RH, non-condensing
Sintered Filter Material	304 Series Stainless Steel
Storage Temperature Range	-40 to 185ºF (-40 to 85ºC)
RH Accuracy @ 77°F (25°C)	+/- 2% from 10 to 90% RH
Foam Material \| Foam Thickness	Cross-linked LPDE \| 0.25” (6.35 mm)
Temperature Calibration Offset	+/- 9ºF (+/- 5ºC) (Field Configurable)
End of Line Termination Resistance	120 Ohms Termination Resistance (Field Selectable)
Modbus Data Bits / Parity / Stop Bit	8 Data Bits \| None/Even/Odd \= Field Selectable \| 1 or 2\= Field Selectable
Transmitter Operating Temperature Range	-40 to 176ºF (-40 to 80ºC)
