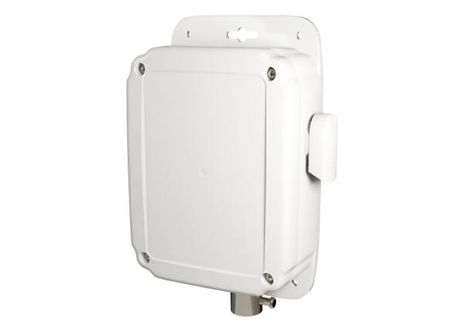

ACI ESENSE-OUTDOOR

Name: ACI ESENSE-OUTDOOR
Brand: ACI
SKU: CS6287517
Availability: OutOfStock

SKU: CS6287517MPN: ESENSE-OUTDOORAlternate Part #: 135028

Carbon Dioxide Sensor, 0-2000 PPM, Heated Enclosure w/ Thermostat, 0-10V or 2-10V/4-20mA Output

Product Details

Carbon Dioxide Sensor, 0-2000 PPM, Heated Enclosure w/ Thermostat, 0-10V or 2-10V/4-20mA Output

Accuracy	±30 ppm and ±3% of reading
Calibration	Senseair ABC algorithm (Automatic Baseline Correction)
Sensor Life	>15 years
Warm Up Time	1 minute (@ full specs 15 minutes)
Repeatability	±20 ppm ±1% of measured value
Response Time	\<10 seconds @ 30 cc/min ow rate, \< 3 minutes diusion time
Sensing Range	0 to 2000 ppm
Output Signals	Standard: Out 1: 0-10V for 0 to 2000 ppm Out 2: 2-10V or 4-20mA for 0 to 2000 ppm
Product Weight	1.4 lbs (0.64 Kg)
Sensing Method	Single beam Non-dispersive Infrared (NDIR)
Supply Voltage	24 VAC/VDC ±20%; 50/60Hz (Half-wave rectied)
Agency Approvals	EMC Directive 2014/30/EC RoHS Directive 2011/65/EU RoHS 3 Directive 2015/863/EU
Enclosure Heater	24 VAC Turns on @ 39ºF (4ºC) and below
Annual Zero Drift	± 0.3% of measurement range
Power Consumption	Sensor: \<1W Heater: 10W Maximum Total Power: 11W
Enclosure Material	Poly Carbonate IP65, Flammability Rating UL94V-0
Operating Pressure	+1.6% per 0.145 psi (1 kPa) deviation from normal pressure (1 Atmosphere \= 14.7 psi (1.013 KPa))
Operating RH Range	0 - 95% RH Non-condensing
Extended CO2 Ranges	Up to 10,000 ppm (factory set or SADK Kit required)
Operating Environment	Outdoor or Non-Heated Structures

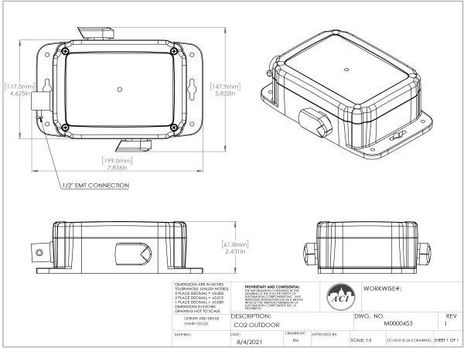

Dimensions (H x W x D)	(H) 7.62” (193.55 mm) x (W) 4.63” (117.60 mm) x (D) 2.44” (61.98 mm)
Electrical Connections	0.00232 in² (1.5 mm²) screw terminals
Storage Temperature Range	-4 to 122ºF (-20 to 50ºC)
Operating Temperature Range	-22ºF to 115ºF (-30ºC to 46ºC)
Extended Range Accuracy>2,000 PPM	+/- 30 ppm and +/- 5% of reading
