ACI A/R2-PUP

Name: ACI A/R2-PUP
Brand: ACI
SKU: CS6287266
Availability: OutOfStock

SKU: CS6287266MPN: A/R2-PUPAlternate Part #: 132711

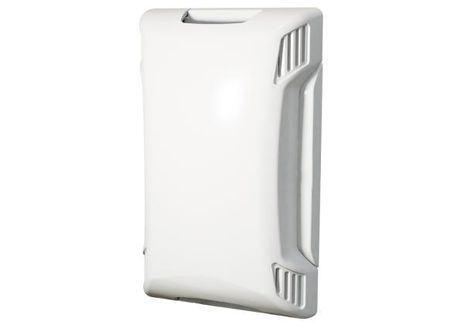

Room Pickup Port (R2) White

Product Details

Room Pickup Port (R2) White

Product Weight	A/R2-PUP: 0.20 lbs (0.09 kg) A/R-PUP: 0.16 lbs (0.073 kg)
Enclosure Color	A/R2-PUP: White A/R-PUP: Beige
Filter Material	Nickel Plated Brass
Agency Approvals	RoHS2, WEEE, Reach
Maximum Pressure	Filter: 150 psi (10.3 bar) Medical Tubing (A/10’ Tube, A/20’ Tube, A/100’ Tube): 65 psi maximum at 73ºF (23ºC)

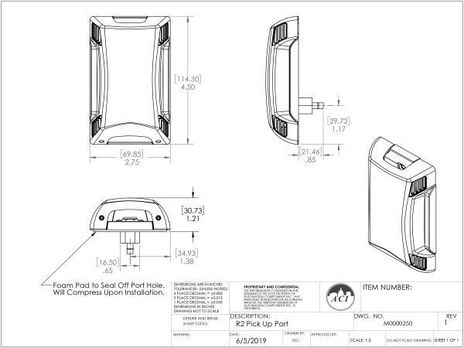

Product Dimensions	A/R2-PUP: 4.50” (11.4 cm) x 2.75” (6.99 cm) x 1.12” (2.84 cm) A/R-PUP: 4.51” (11.5 cm) x 2.75” (6.99 cm) x 1.14” (2.90 cm)
Storage Temperature Range	-40º to 140ºF (-40º to 60ºC)
Operating Temperature Range	35º to 140ºF (2º to 60ºC)
Tubing Connection \| Tubing Size	Barbed fitting accepts 3/16” ID flexible Poly tubing
Foam Pad Material \| Flammability Rating	Cross-Linked Polyethylene \| FMUSS-302
Enclosure Material \| Flammability Rating	ABS \| UL-94 HB
