All ProductsACI

ACI A/CSI-R2

SKU: CS6289169MPN: A/CSI-R2Alternate Part #: 144215

10,000 Ohm Thermistor (CSI), Room (R2)

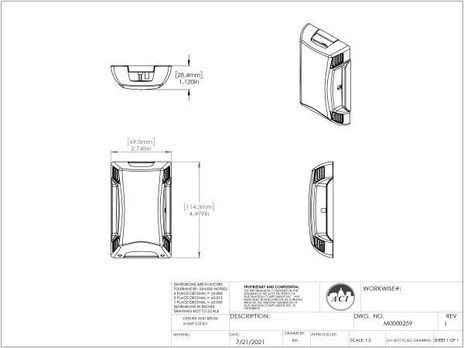

ACI A/AN-BC-R2, A/CSI-R2

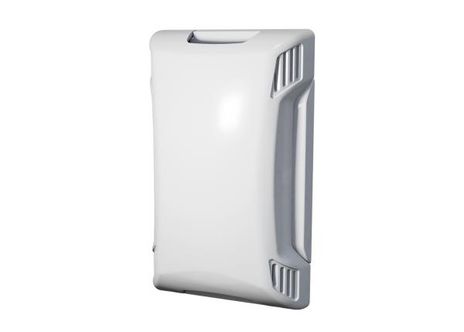

ACI A/AN-BC-R2, A/CSI-R2
ACI A/AN-BC-R2, A/CSI-R2
ACI A/AN-BC-R2, A/CSI-R2
Contact us for pricing and availability

Product Details

10,000 Ohm Thermistor (CSI), Room (R2)

Product Configuration

Sensor CSI (10,000 Ω)
Enclosure Room (R2)
Configuration Room
Communication Jack (Temperature) None

Product Family Specifications

Stability Sensor Dependent; Contact ACI for more information on specific sensor
Sensor Type Thermistor
Sensor Curve Non-Linear, NTC (Negative Temperature Coefficient)
Product Weight A/XX-R/RS/RO Series: 0.14 lbs. (63.5g) A/XX-RSO Series: 0.18 lbs. (81.6g) A/XX-R2/R2S/R2O Series: 0.16 lbs. (72.6g) A/XX-R2SO Series: 0.20 lbs. (90.7g) AII LCD Display Units: 0.18 lbs. (81.6g)
Override Option Short Thermistor (Default); Field (Jumper) Selectable “Dry Contact” Closure (Separate Input); Short Set Point available upon request
Agency Approvals CE**, UKCA**, RoHS2, WEEE Note**: All LCD Display Units are not CE/UKCA Compliant, but they are RoHS2 Compliant
Set Point Tolerance +/- 10% of Range
LCD Display Accuracy +/- 2°F or +/- 2°C @ 71°F (21.5°C) Typical
Connections | Wire Size Screw Terminal Blocks | 16 (1.31 mm) to 26 (0.129 mm) AWG
Operating Humidity Range 10 to 95%RH, non-condensing
Storage Temperature Range Non-LCD: -40 to 65°C (-40 to 149°F), LCD Display: -10 to 65°C (14 to 149°F)
Enclosure Material | Color “-R2” Enclosure: ABS Plastic | White, UL94-HB “R” Enclosure: ABS Plastic | Beige UL94-HB
LCD Display Supply Voltage \< 4 mA / 0.12 VA
Power Dissipation Constant 3 mW/°C A/1.8K Series: 1 mW/°C A/10K-E1 Series: 2 mW/°C
LCD Display Life Expectancy 50,000 Hours Minimum
Operating Temperature Range 1.5 to 50°C (35 to 122°F)
Accuracy 0-70ºC (32-158ºF) +/- 0.2°C (+/-0.36°F) A/10K-E1 Series: +/-0.3°C (+/-0.54°F) A/1.8K Series: +/-0.5°C @ 25°C (77°F) and +/-1.0°C (+/-1.8°F)
Terminal Block Torque Rating 0.5 Nm (minimum); 0.6 Nm (maximum)
Response Time (63% Step Change) 10 Seconds nominal
LCD Display Descriptor | Number of Digits °F (Fahrenheit) or °C (Celsius) | 3 ½ Segment Display

Specifications

SKUCS6289169
MPNA/CSI-R2
Alternate Part #144215
