All ProductsACI

ACI A/R-PUP

SKU: CS6286691MPN: A/R-PUPAlternate Part #: 125584

Room Pickup Port, (R) Beige

ACI A/R-PUP
ACI A/3K-R, A/CSI-R, A/R-PUP, WH2630A-300, WH2630B, WT2630A
ACI A/R-PUP
ACI A/3K-R, A/CSI-R, A/R-PUP, WH2630A-300, WH2630B, WT2630A
Contact us for pricing and availability

Product Details

Room Pickup Port, (R) Beige

Product Family Specifications

Product Weight A/R2-PUP: 0.20 lbs (0.09 kg) A/R-PUP: 0.16 lbs (0.073 kg)
Enclosure Color A/R2-PUP: White A/R-PUP: Beige
Filter Material Nickel Plated Brass
Agency Approvals RoHS2, WEEE, Reach
Maximum Pressure Filter: 150 psi (10.3 bar) Medical Tubing (A/10’ Tube, A/20’ Tube, A/100’ Tube): 65 psi maximum at 73ºF (23ºC)

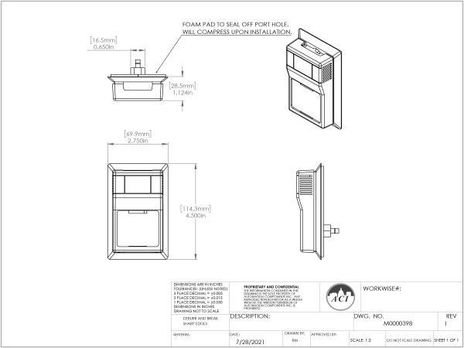

Product Dimensions A/R2-PUP: 4.50” (11.4 cm) x 2.75” (6.99 cm) x 1.12” (2.84 cm) A/R-PUP: 4.51” (11.5 cm) x 2.75” (6.99 cm) x 1.14” (2.90 cm)
Storage Temperature Range -40º to 140ºF (-40º to 60ºC)
Operating Temperature Range 35º to 140ºF (2º to 60ºC)
Tubing Connection | Tubing Size Barbed fitting accepts 3/16” ID flexible Poly tubing
Foam Pad Material | Flammability Rating Cross-Linked Polyethylene | FMUSS-302
Enclosure Material | Flammability Rating ABS | UL-94 HB

Specifications

SKUCS6286691
MPNA/R-PUP
Alternate Part #125584
