ACI

ACI A/1K-NI-AP

SKU: CS6285963MPN: A/1K-NI-APAlternate Part #: 120487

1,000 Ohm Nickel RTD, Wall Plate, Aluminum

ACI A/1.8K-AP, A/1.8K-SP, A/100-2W-SP, A/100-3W-SP, A/100KS-AP, A/100KS-SP, A/10K-E1-AP, A/10K-E1-SP, A/10KS-AP, A/10KS-SP, A/1K-2W-SP, A/1K-2W-SP-NIST, A/1K-3W-SP, A/1K-NI-AP, A/1K-NI-SP
$39.27
Unit
Available on backorder
remove
add

Product Details

1,000 Ohm Nickel RTD, Wall Plate, Aluminum

Product Configuration

Enclosure Aluminum Plate

Product Family Specifications

Stability +/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Sensor Type Nickel RTD
Number Wires Two (Non-Polarity Sensitive)
Sensor Curve PTC (Positive Temperature Coecient)
Plate Material A/1K-NI-SP Series: 430 Stainless Steel (Brushed Stainless Steel Finish) A/1K-NI-AP Series: Aluminum (Smooth Satin Finish, Clear Anodized)
Product Weight A/1K-NI-SP Series: 0.14 lbs. (63.5g) A/1K-NI-AP Series: 0.08 lbs. (36.29g)
Sensor Accuracy -40ºC (-40ºF): +/- 1.52ºC (+/- 2.73ºF) 0ºC (32ºF): +/- 0.4ºC (+/- 0.72ºF) 21.1ºC (70ºF): +/- 0.17ºC (+/- 0.34ºF)) 54.4ºC (130ºF): +/- 0.56ºC (1.00ºF)
Agency Approvals CE, RoHS2, WEEE
Lead Wire Colors Red/Red
Conductor Material Silver Plated Copper

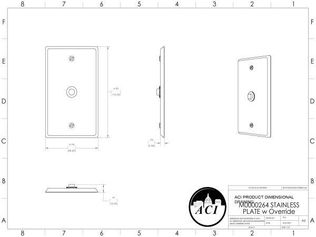

Product Dimensions 4.50” (114.3mm) x 2.78” (70.6mm) x 0.187” (4.76mm)
Number Sensing Points One
Operating Humidity Range 10 to 95% RH, non-condensing
Storage Temperature Range -40 to 71ºC (-40 to 160ºF)
Operating Temperature Range -40 to 71ºC (-40 to 160ºF)
Lead Length | Conductor Size 14” (35.56cm) | 22 AWG (0.65mm)
Response Time (63% Step Change) 25 Seconds nominal
Sensor Output @ 21.1ºC (70ºF) 1000 Ohms nominal
Din Standard | Temperature Coeffcient Din 43760 | 6370 ppm/ºC
Foam Pad Material | Flammability Rating Cross-Linked Polyethylene | FMVSS-302
Self-Heating | Maximum Operating Current 0.3ºC/mW (Still Air) | 5 mA

Specifications

SKUCS6285963
MPNA/1K-NI-AP
Alternate Part #120487
