ACI A/1K-NI-BBS

Name: ACI A/1K-NI-BBS
Brand: ACI
SKU: CS6285964
Availability: OutOfStock

SKU: CS6285964MPN: A/1K-NI-BBSAlternate Part #: 120488

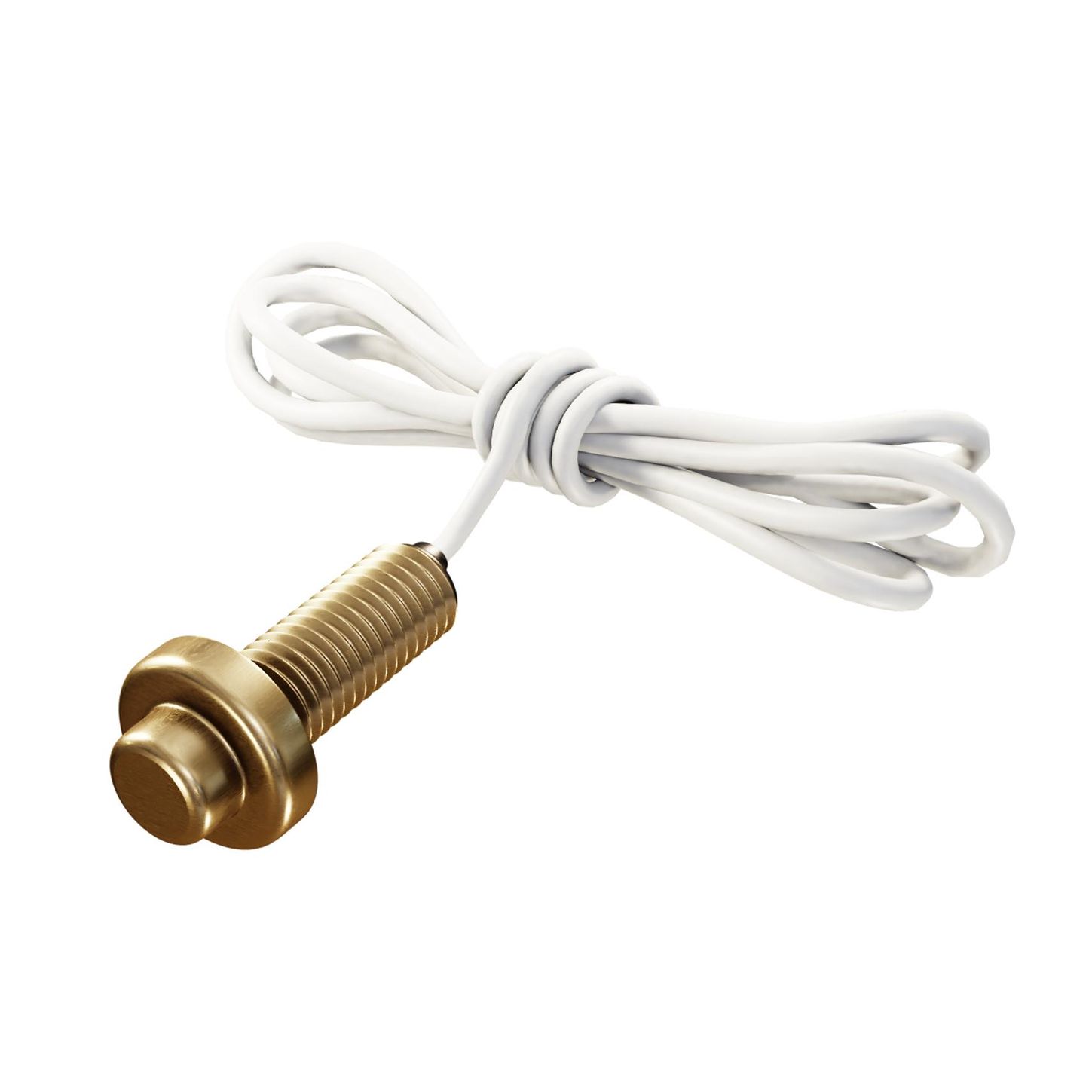

1,000 Ohm Nickel RTD, Flush Mount Button, Brass

ACI A/1.8K-BBS, A/100-2W-BBS, A/100-3W-BBS, A/100KS-BBS, A/10K-E1-BBS, A/10KS-BBS, A/1K-2W-BBS, A/1K-3W-BBS, A/1K-NI-BBS, A/20K-BBS, A/3K-BBS, A/50K-BBS, A/AN-BBS, A/AN-BC-BBS, A/CP-BBS

Product Details

1,000 Ohm Nickel RTD, Flush Mount Button, Brass

Product Configuration

Enclosure	Brass

Product Family Specifications

Stability	+/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Sensor Type	Nickel RTD
Number Wires	Two (Non-Polarity Sensitive)
Sensor Curve	PTC (Positive Temperature Coefficient)
Sensor Accuracy	-40ºC (-40ºF): +/- 1.52ºC (+/- 2.73ºF) 0ºC (32ºF): +/- 0.4ºC (+/- 0.72ºF) 21.1ºC (70ºF): +/- 0.17ºC (+/- 0.34ºF)) 54.4ºC (130ºF): +/- 0.56ºC (1.00ºF) 121ºC (250ºF): +/- 1.25ºC (+/- 2.25ºF)
Agency Approvals	CE, RoHS2, WEEE
Lead Wire Colors	Red/Red
Conductor Material	Silver Plated Copper
Enclosure Material	A/1K-NI-BBS: Brass A/1K-NI-SBS: 304 Stainless Steel A/1K-NI-PBS: ABS
Product Dimensions	A/1K-NI-PBS: 1.00” (25.4mm) x 0.750” (19mm) A/1K-NI-BBS and A/1K-NI-SBS: 1.20” (30.48mm) x 0.700” (17.78mm) A/1K-NI-PBS: 0.04 lbs. (18.15g) A/1K-NI-BBS \& A/1K-NI-SBS: 0.10 lbs. (45.36g)
Number Sensing Points	One
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	A/1K-NI-PBS: -40 to 85ºC (-40 to 185ºF) A/1K-NI-BBS \& A/1K-NI-SBS: -40 to 85ºC (-40 to 185ºF)
Operating Temperature Range	A/1K-NI-PBS: -40 to 70ºC (-40 to 158ºF) A/1K-NI-BBS \& A/1K-NI-SBS: -40 to 121ºC (-40 to 250ºF)
Lead Length \| Conductor Size	24” (61cm) \| 22 AWG (0.65mm)
Response Time (63% Step Change)	8 Seconds nominal
Sensor Output @ 21.1ºC (70ºF)	1000 Ohms nominal
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) Colored Leads \| Mil Spec 16878/4 Type E)
Din Standard \| Temperature Coeffcient	Din 43760 \| 6370 ppm/ºC
Fitting Material \| Flammability Rating	A/1K-NI-PBS: ABS \| UL94-HB
Self-Heating \| Maximum Operating Current	0.3ºC/mW (Still Air) \| 5 mA
