ACI A/1K-NI-S-PB

Name: ACI A/1K-NI-S-PB
Brand: ACI
SKU: CS6286578
Availability: OutOfStock

SKU: CS6286578MPN: A/1K-NI-S-PBAlternate Part #: 124206

1,000 Ohm Nickel RTD, Strap On, Plastic Enclosure

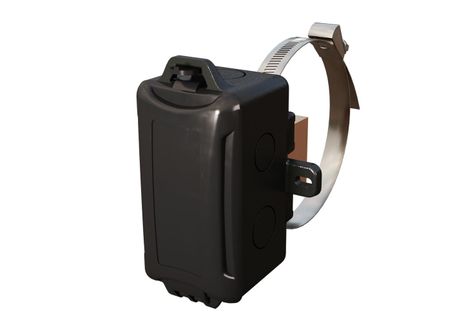

ACI A/1.8K-S-PB, A/100-2W-S-PB, A/100-3W-S-PB, A/100-3W-S10-PB, A/100KS-S-PB, A/10K-E1-S-PB, A/10KS-S-PB, A/1K-2W-S-PB, A/1K-3W-S-PB, A/1K-NI-S-PB, A/3K-S-PB, A/50K-S-PB, A/AN-BC-S-PB, A/AN-S-PB, A/BALCO-S-PB

Product Details

1,000 Ohm Nickel RTD, Strap On, Plastic Enclosure

Product Configuration

Length	1.25” to 4” Pipe Size
Enclosure	Plastic

Product Family Specifications

Sensor Type	Nickel RTD
Number Wires	Two (Non-Polarity Sensitive)
Sensor Curve	PTC (Positive Temperature Coefficient)
Product Weight	A/1K-NI-XX-GD: 0.80 lbs. (0.37kg) A/1K-NI-XX-PB: 0.40 lbs. (0.18kg) A/1K-NI-XX-4X: 0.55 lbs. (0.25kg)
Agency Approvals	CE, RoHS, WEEE
Conductor Material	Silver Plated Copper
Operating RH Range	10 to 95% RH, non-condensing
Pipe Sizes Accepted	A/1K-NI-S-XX: 1 ¼” (32mm) to 4” (100mm) A/1K-NI-S10-XX: 2” (50mm) to 10” (250mm)
Nickel RTD Stability	+/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Number Sensing Points	One
Storage Temperature Range	-40 to 85ºC (-40 to 185ºF)
Nickel RTD Sensor Accuracy	-40ºC (-40ºF): +/- 1.52ºC (+/- 2.73ºF) \| 0ºC (32ºF): +/- 0.4ºC (+/- 0.72ºF) 21.1ºC (70ºF): +/- 0.17ºC (+/- 0.34ºF) \| 54.4ºC (130ºF): +/- 0.56ºC (+/- 1.00ºF) 121ºC (250ºF): +/- 1.25ºC (+/- 2.25ºF)
Lead Length \| Conductor Size	14” (35.6cm) \| 22 AWG (0.65mm)
Response Time (63% Step Change)	8 Seconds nominal
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) Colored Leads \| MIL-W-16878/4 (Type E)
Din Standard \| Temperature Coeffcient	Din 43760 \| 6370 ppm/ºC
Foam Pad Material \| Flammability Rating	Neoprene/EPDM/SBR Polymer \| UL94-HF1; MIL-R-6130C; FMVSS-302
Self-Heating \| Maximum Operating Current	0.3ºC/mW (Still Air) \| 5 mA
Nickel RTD (PTC) Output @70°F (21.1°C) (Wire Colors)	1000 Ohms nominal \| (Red/Red)
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	A/1K-NI-S-GD: Galvanized Steel, -40 to 93ºC (-40 to 200ºF), NEMA 1 (IP 10) A/1K-NI-PB: ABS Plastic, -30 to 85ºC (-22 to 185ºF), UL94-HB, Plenum Rated A/1K-NI-S-4X: Polystyrene, -40 to 70ºC (-40 to 158ºF), UL94-V2, NEMA 4X (IP 66)
