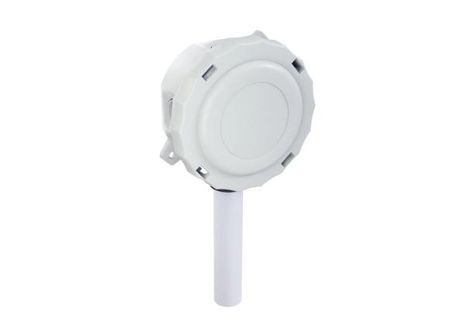

ACI A/1K-NI-O-EH

Name: ACI A/1K-NI-O-EH
Brand: ACI
SKU: CS6286655
Price: 56.16 USD
Availability: OutOfStock

SKU: CS6286655MPN: A/1K-NI-O-EHAlternate Part #: 125209

1,000 Ohm Nickel RTD, Outside Air, Euro Enclosure

$56.16

Unit

Available on backorder

Quantity

remove

add

Product Details

1,000 Ohm Nickel RTD, Outside Air, Euro Enclosure

Enclosure	Euro Housing

Stability	+/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Number Wires	Two (Non-Polarity Sensitive)
Product Weight	A/1K-NI-O-EH: 0.46 lbs. (0.21kg) \| A/1K-NI-O-4X: 0.38 lbs. (0.17kg); A/1K-NI-O-BB: 0.76 lbs. (0.35kg)
Sensor Accuracy	-40ºC (-40ºF): +/- 1.52ºC (+/- 2.73ºF) 0ºC (32ºF): +/- 0.4ºC (+/- 0.72ºF) 21.1ºC (70ºF): +/- 0.17ºC (+/- 0.34ºF) 54.4ºC (130ºF): +/- 0.56ºC (1.00ºF)
Agency Approvals	CE, RoHS2, WEEE
Lead Wire Colors	Red/Red
Conductor Material	Silver Plated Copper
Number Sensing Points	One
Temperature Coefficient	6370 ppm/ºC
Operating Humidity Range	10 to 100% RH, Condensing
Storage Temperature Range	-40 to 70ºC (-22 to 158ºF)
Sensor Type \| Sensor Curve	Nickel RTD \| PTC (Positive Temperature Coefficient)
Operating Temperature Range	-40 to 70ºC (-22 to 158ºF)
Lead Length \| Conductor Size	14” (35.6cm) \| 22 AWG (0.65mm)
Response Time (63% Step Change)	30 Seconds nominal
Sensor Output @ 21.1ºC (70ºF)	1000 Ohms nominal
Lead Wire Insulation \| Wire Rating	Etched (PTFE) Teflon Colored Leads \| MIL-W-16878/4 (Type E)
Self-Heating \| Maximum Operating Current	0.3ºC/mW (Still Air) \| 5 mA
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	“-EH” Enclosure: PC/ASA Plastic w/ UV Protectant; -40 to 88ºC (-40 to 190ºF); UL94-V0 “-4X” Enclosure: Polystyrene Plastic, -40 to 70ºC (-40 to 158ºF), UL94-V2, NEMA 4X (IP 66) “-BB” Enclosure: Aluminum, -40 to 121ºC (-40 to 250ºF), NEMA 3R
