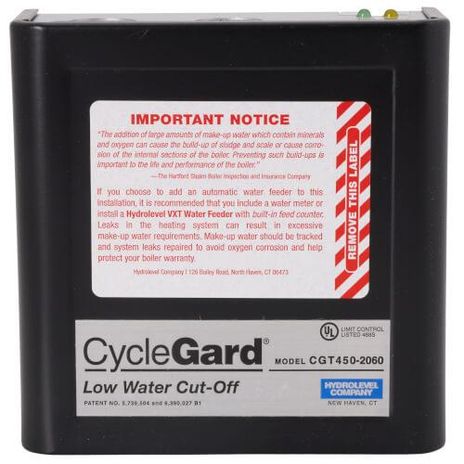

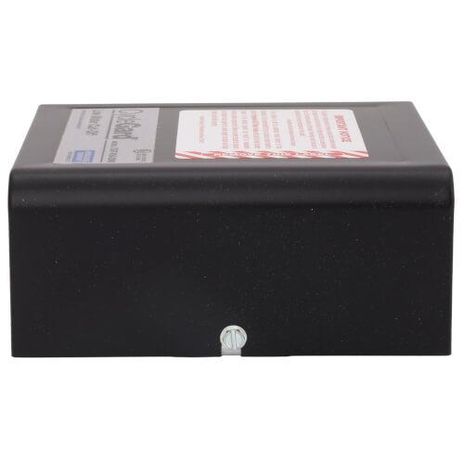

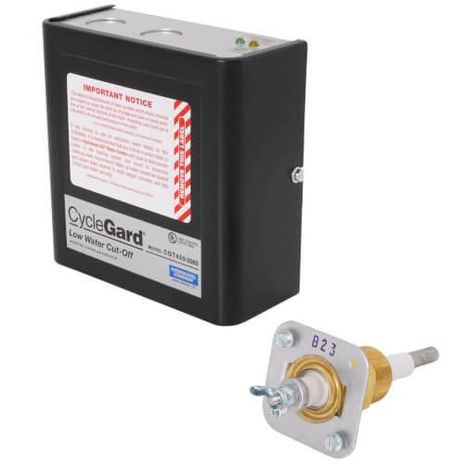

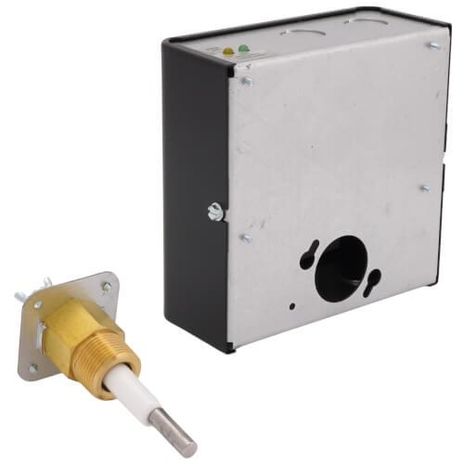

Hydrolevel 45-480-2060

CycleGard CGT450-2060 Low Water Cutoff for Tankless Coil w/ 15 Minute Intermittent Level Test - 120V (Steam)

While continuously monitoring the water level, CycleGard adds protection against false signals created by foam and volatile water conditions. At preset intervals, CycleGard’s Intermittent Level Test removes power from the burner for 60 or 90 seconds. During this test, foam dissipates and the water level stabilizes– allowing CycleGard to monitor the true water level in the boiler assuring accurate operatio.

The CGT450-2060 has an added feature for boilers equipped with tankless coils. It suspends operation of the Intermittent Level Test when the boiler is receiving a call for domestic hot water. This feature ensures continued burner operation during a demand for hot water.

Product Features

• Intermittent Level Test – Maximum Protection for Foaming Boilers
• 15 Second Burner Off Delay
• 30 Second Burner On Delay
• Automatic Reset
• Low Water Indicating Light
• Direct Boiler Mounting – Eliminates Blowdowns
• Models ending in “2060” perform the ILT every 20 minutes for 60 seconds.

Specifications

• Power Consumption: 4.2 VA
• Switching Capacity: 5.8 FLA, 34.8 LRA
• Switch Contacts: SPDT
• Max Pressure: 15 PSI
