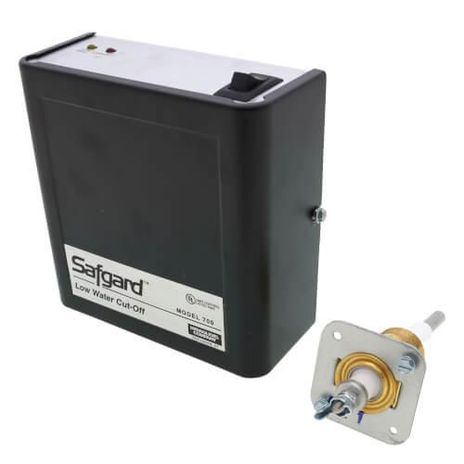

Hydrolevel 45-700

Safgard 700 Low Water Cutoff w/ Manual Reset - 24V

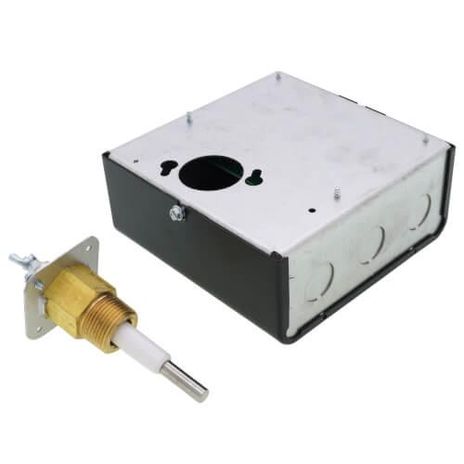

Hydrolevel low water cut-offs are electrically operated. A probe is installed in the boiler shell or external manifold and is connected to the control unit. Water is used as a conductor to complete the circuit between the probe and the boiler shell. When water is in contact with the probe, the circuit is completed; when the water level drops below the probe, the circuit opens. Hydrolevel controls provide contacts to de-energize the burner circuit in a low water condition.

700 Series Interrupts power immediately in a low water condition. Burner circuit locks-out if water remains below probe for 30 seconds. Manual reset will not trip due to power failures. Note: Can also be used as a secondary cut-off on steam boilers

Features

• Heavy-duty electro-mechanical design for long life
• Automatically shuts off burner in a low water condition to prevent boiler damage
• Low maintenance. No moving parts to wear stick or hang up, as in float devices.
• Manual reset feature will not lock out in power failures

Specifications

• Power Consumption: 2 VA
• Switching Capacity: 50 VA
• Switch Contacts: SPDT
• Max. Pressure:160 PSI
