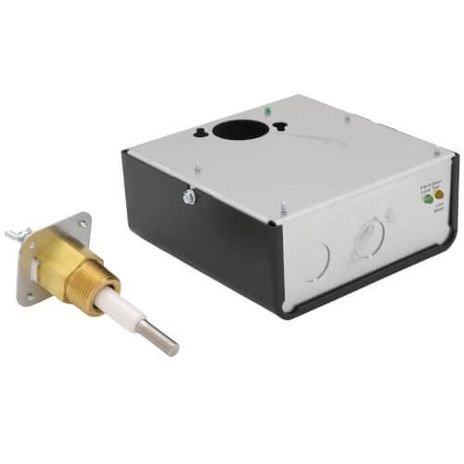

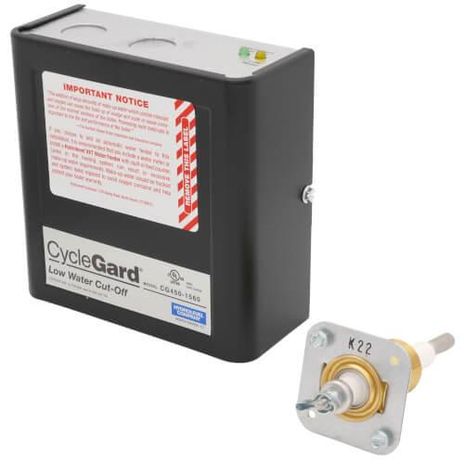

Hydrolevel 45-460-1560

CycleGard CG450-1560 Low Water Cutoff w/ 15 Minute Intermittent Level Test - 120V (Steam)

Intermittent Level Test – Maximum Protection for Foaming Boilers

• 15 Second Burner Off Delay
• 30 Second Burner On Delay
• Automatic Reset
• Low Water Indicating Light
• Direct Boiler Mounting – Eliminates Blowdowns

Burner circuit contacts open after 15 second delay in a low water condition. Delay prevents short cycling caused by momentary fluctuations in the boiler water level. Automatically reactivates burner circuit 30 seconds after water reaches the probe, allowing optional water feeder to raise water level above the probe. Intermittent Level Test (ILT) feature provides maximum boiler protection by removing power from the burner circuit at set intervals.

This model performs the ILT every 15 minutes for 60 seconds.
