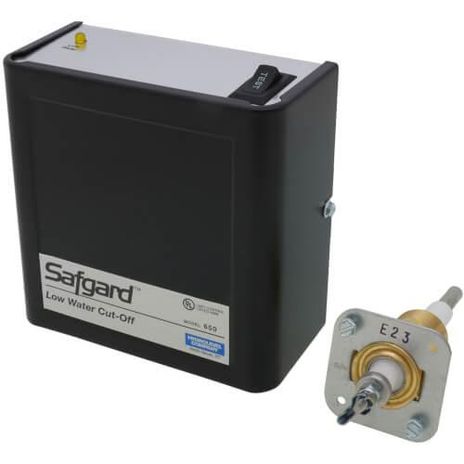

Hydrolevel 45-650

Safgard 650 Low Water Cutoff w/ Auto Reset \& Test Button/Light - 120V

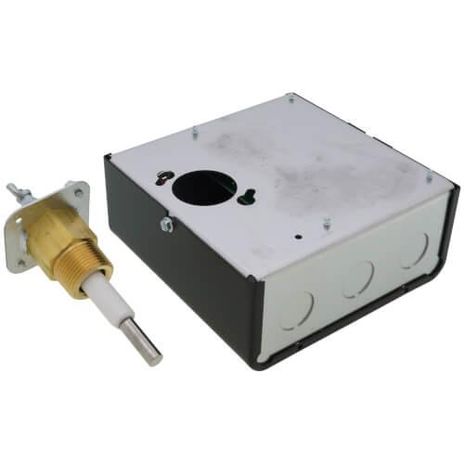

Hydrolevel low water cut-offs are electrically operated. A probe is installed in the boiler shell or external manifold and is connected to the control unit. Water is used as a conductor to complete the circuit between the probe and the boiler shell. When water is in contact with the probe, the circuit is completed; when the water level drops below the probe, the circuit opens. Hydrolevel controls provide contacts to de-energize the burner circuit in a low water condition.

Features

• Reliable Electronic Operation
• Low Maintenance
• Easy to Install
• Inexpensive to Own and Operate
• 100% Factory Tested
• Automatic Reset
• Burner Circuit Test Button
• LED Indicating Lights

Specifications

• Power Consumption: 4 VA
• Switching Capacity: 5.8 FLA, 34.8 LRA
• Switch Contacts: SPDT
• Max. Pressure:160 PSI
