Turck RM-116T10C-8BSARNS-H1151
SKU: CS5978600MPN: RM-116T10C-8BSARNS-H1151Alternate Part #: 200006714
$1,529.75
UnitAvailable on backorder
Product Details

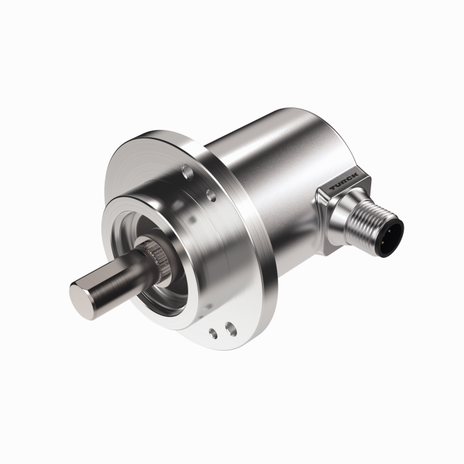

Absolute Shaft Encoder
Industrial Line
- Absolute Shaft Encoder
- Protection class IP65 on housing and shaft side
- ‐40…+85°C
- Max. 4000 rpm (continuous operation: 2000)
- Energy harvesting technology
- 10-30 VDC power supply
- 0-10V Analog Output
- M12 connection, 5-pin
Attributes
| Ambient Temperature | -40…+85 °C |
| Ecl Ss Code V5 1 4 | 27270501 -/- Encoder, absolute |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 58 mm |
| Flange Type | Clamping flange |
| Housing Material | Die-cast zinc |
| Operating Voltage | 15…30 VDC |
| Output Function | Analog output |
| Output Type | Absolute multiturn |
| Protection Class | IP65 |
| Protection Class Shaft | IP65 |
| Shaft Diameter D Mm | 10 mm |
| Shaft Type | Solid shaft |
| Technology | Magnetic |
| Voltage Output | 0…10 V |
Specifications
| SKU | CS5978600 |
|---|---|
| MPN | RM-116T10C-8BSARNS-H1151 |
| Alternate Part # | 200006714 |
