Turck RI-04Q6C-2H1024-C5M
SKU: CS5974538MPN: RI-04Q6C-2H1024-C5MAlternate Part #: 200004424
$666.89
UnitAvailable on backorder
Product Details
Incremental Shaft Encoder
Industrial Line

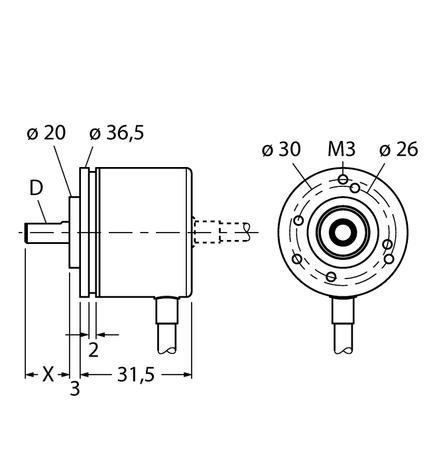

- Clamping receptacle, Ø 36.5 mm
- Solid shaft, Ø 6 mm × 12.5 mm, with flat
- Optical measuring principle
- Shaft material: stainless steel
- Protection class IP50 on shaft side
- ‐20…+85 °C
- Max. 12000 rpm
- 8…30 VDC
- Push-pull 7272, with inversion
- Pulse frequency max. 200 kHz
- Cable connection
- 1024 pulses per revolution
Attributes
| Ambient Temperature | -20…+85 °C |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Cable |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 36.5 mm |
| Flange Type | Clamping flange |
| Housing Material | Aluminum chromated |
| Operating Voltage | 8…30 VDC |
| Output Function | Push-Pull/HTL, with inverted signals |
| Output Type | Incremental |
| Protection Class | IP65 |
| Protection Class Shaft | IP50 |
| Resolution Incremental | 1024 ppr |
| Shaft Diameter D Mm | 6 mm |
| Shaft Type | Solid shaft |
| Technology | Optical |
Specifications
| SKU | CS5974538 |
|---|---|
| MPN | RI-04Q6C-2H1024-C5M |
| Alternate Part # | 200004424 |
