Turck RI-01Q5F3-2D1000-CA
SKU: CS3832246MPN: RI-01Q5F3-2D1000-CAAlternate Part #: 1545370
1545370 - INCREMENTAL
$462.79
UnitAvailable on backorder
Product Details
Incremental Encoder
Industrial Line

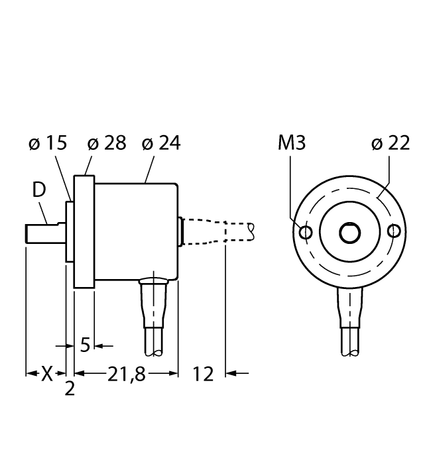

- Synchro flange, Ø 28 mm
- Solid shaft, Ø 5 mm × 10 mm
- Optical measuring principle
- Shaft material: stainless steel
- Protection class IP50 on shaft side
- ‐20…+85 °C
- Max. 12000 rpm
- 5…24 VDC
- Cable connection, 8-pin
- Push-pull 7272, with inversion
- Pulse frequency max. 160 kHz
- 1000 pulses per revolution
Attributes
| Ambient Temperature | -20…+85 °C |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Cable |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 28 mm |
| Flange Type | Synchro flange |
| Housing Material | Aluminium |
| Operating Voltage | 5…24 VDC |
| Output Function | Push-Pull/HTL, with inverted signals |
| Output Type | Incremental |
| Protection Class Housing | IP64 |
| Protection Class Shaft | IP50 |
| Resolution Incremental | 1000 ppr |
| Shaft Diameter D Mm | 5 mm |
| Shaft Type | Solid shaft |
| Technology | Optical |
Specifications
| SKU | CS3832246 |
|---|---|
| MPN | RI-01Q5F3-2D1000-CA |
| Alternate Part # | 1545370 |
