Process InstrumentationOmega

Omega ISD-TC

SKU: CS5803698MPN: ISD-TC

Web-based temperature monitoring

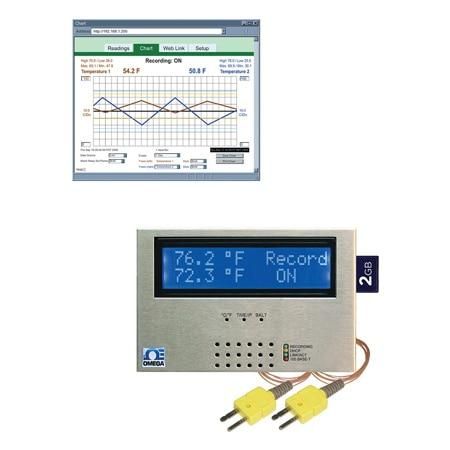

Omega ISD-TC
$1,042.19
Unit
Available on backorder
remove
add

Documents

Product Details

  • Virtual Chart Recorder
  • Web Server
  • Dual Thermocouple (10 Types)
  • Alarms by Email or Text Message

Attributes

Alarm Two contact inputs, TTL 0.5 mA with 10K pull-up; one open collector output 150 mA @ 30 Vdc
Width 5.13 in
Height 1.31 in
Length 3.47 in
Memory 2 GB SD Flash Card
Weight 1.02 lb
Display LCD
Software OPC Server; macro for data logging in Excel program; compatible with Windows® operating systems
Approvals CE, FCC-B
Series ID ISD-TC-Series
Input Type External
Form factor Wall Bracket Mount
Memory Note 2GB card: 8 months of data storage at 1 second recording intervals or 7 years at 10 second intervals
Samples,Max 85k Samples, Interval 16 Samples / Second, 1 Second recording intervals or 7 years at 10 sec intervals
Sensor Type Thermocouple
Display Note 32 digits 4.8 x 9.7 mm (0.19 x 0.38”)
Relay Output 1.5 A @ 30 Vdc
Configuration Internal Web UI
Data Interface Ethernet
Supply Voltage 9 to 12 Vdc
Measurement Type Thermocouple
Number of Relays 2
Country of Origin Mexico
Supply Power Note Safety Qualified AC Power Adaptor:, Input: 100 to 240 Vac, 50/60 Hz, Nominal Output: 9 Vdc @ 0.5 A,(included), Back-up Battery: 9 Vdc, alkaline (included)
Supply Power Type DC/Battery
Thermocouple Type J, K, T, E, N, R, S, B, C, L
Data Interface Note Ethernet : (RJ45) Fixed or auto negotiating 10/100BASE-T, AUTO MDI/MDIX Protocols: TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet
Battery Size and Type Alkaline 9V
Temperature Stability 0.08°C/°C
Cable Temperature, Max 125 °C
Cable Temperature, Min -40 °C
Number of Measurements 2
Temperature Resolution 1 °C, 0.1 °C
Storage Temperature, Max 85 °C
Storage Temperature, Min -40 °C
Operating Temperature, Max 60 °C
Operating Temperature, Min 0 °C
Thermocouple Lead Resistance 100 Ω max
Battery Operating Temperature -18 to 55 °C
Thermocouple Cold End Tracking 0.05°C/°C
AC Adaptor Operating Temperature 0 to 40 °C

Specifications

SKUCS5803698
MPNISD-TC
