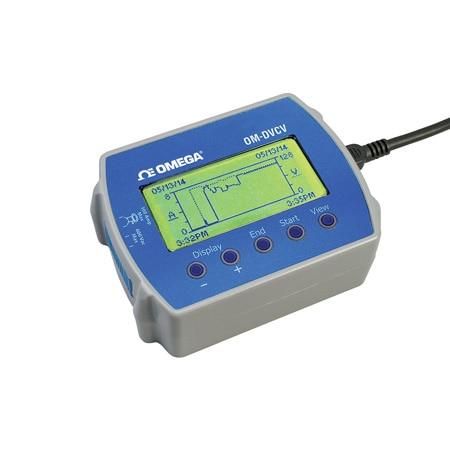

Omega OM-DVCV

Name: Omega OM-DVCV
Brand: Omega
SKU: CS5795028
Price: 442.51 USD
Availability: OutOfStock

SKU: CS5795028MPN: OM-DVCV

AC Current and Voltage Data Logger with Graphing Display

$442.51

Unit

Available on backorder

Quantity

remove

add

Documents

Product Details

Measures AC Current up to 300A and Voltage up to 600V
Text Display: Real Time Measurements, Logging Summary, Sample Rate, Memory Used and Memory Left
Visual Over and Under Alarm Indicators
USB Connection

Attributes

Width	4 in
Height	1.5 in
Length	3.05 in
Weight	200 g
Software	Windows XP/Vista/7, 8, 10
Series ID	OM-DVCV-Logger
Alarm Note	Visual over and under alarm indicator for current and voltage; watts alarms are not available
Resolution	Current: 0.2 A, Voltage: 0.2 V
Stop Modes	When Memory is Full
Start Modes	Adjustable Delay Start, Immediate Start
Battery life	up to 1 yr
Display Note	Text Display: Displays real time current, voltage and watts; displays logging summary, sample rate, memory used and memory left. Graph Display: Shows measurement trends graphically; graph can be scrolled through the entire logged data.
Display Type	LCD
File Formats	excel, Text
Sampling Rate	1 Hz (1 update/second)
Time Accuracy	±100 ppm @ 24°C (75°F)
Data Interface	USB
Measurement Type	AC Current, AC Voltage
Storage Capacity	43,344 points for current or voltage only; 21,672 points for current and voltage
USB Cable Length	6 ft
Variables Logged	User Selectable; Disabling channels increases the storage capacity of the other channels
Country of Origin	China
Supply Power Type	Battery
Sampling Rate Note	1 Second to 9 hours
Real Time Recording	Visual indication through the status LED. Software real time status
Battery Size and Type	Alkaline AA
Number of Measurements	1
Storage Temperature, Max	70 °C
Storage Temperature, Min	-20 °C
Current Measurement Range	1 to 300 Aac
Voltage Measurement Range	1 to 600 Vac
Operating Temperature, Max	65 °C
Operating Temperature, Min	-10 °C
