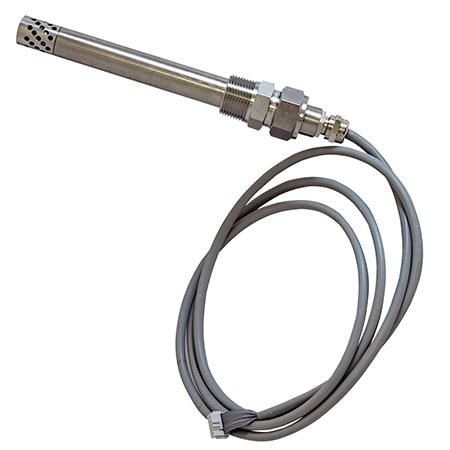

Omega HX85BA
SKU: CS6072270MPN: HX85BA
Wall, Remote, or Duct Mt. Temp, RH, Dew Pt, or BP Transmitters
$1,894.73
UnitAvailable on backorder
Product Details
- 316 SS Housing
- ±1% RH Accuracy
- ±0.5°C (1.0°F) Temperature Accuracy
- High Temperature [120°C (248°F)]
Attributes
| Filter | Sinter Stainless Steel |
| Weight | 0.9 kg |
| Accuracy | ± 0.5 °C (± 0.9 °F) |
| Series ID | HX80A-Srs-TRH-BP-Sig-Cond |
| Cable Length | 1.8 m |
| Current, Max | 50 mA |
| Probe Length | 203 mm |
| Pressure Note | 317 kg (700 lb) (47.6 bar) |
| Time Constant | <15 sec, air flow dependent (for 66.6% response) |
| Data Interface | RS232 |
| Probe Diameter | 19 mm |
| Supply Voltage | 18 to 30 Vdc |
| Pressure Limits | Up to 690 psi |
| Sensor Material | Stainless Steel |
| Measurement Type | Temperature, Humidity, Barometric Pressure |
| Country of Origin | United States |
| Electrical Output | 0 to 10 Vdc |
| Relative Humidity | 5 to 95% |
| Data Interface Note | RS232C (bi-directional) to DTE device, 19.2 kilo baud, 8 bits data, 1 stop bit, no parity |
| Mounting Orientation | Remote Mount |
| Process Connection Size | ¾ in |
| Process Connection Type | NPT Male and Female |
| Measurement Pressure, Max | 1100 mBar |
| Measurement Pressure, Min | 750 mBar |
| Relative Humidity Accuracy | ± 1.0 % RH |
| Temperature Measurement, Max | 120 °C |
| Temperature Measurement, Min | -20 °C |
Specifications
| SKU | CS6072270 |
|---|---|
| MPN | HX85BA |
