Carrier ZR48K5E-TFD-830

Name: Carrier ZR48K5E-TFD-830
Brand: Carrier
SKU: CS4231131
Price: 3258.54 USD
Availability: OutOfStock

SKU: CS4231131MPN: ZR48K5E-TFD-830Alternate Part #: CAR-ZR48K5E-TFD-830

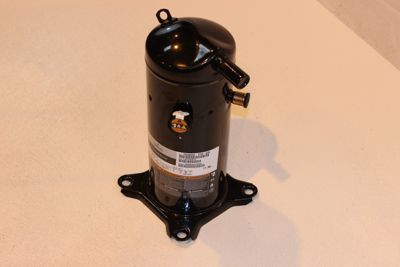

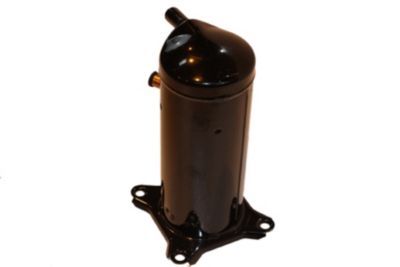

Factory Authorized Parts™ - ZR48K5E-TFD-830 Copeland Scroll Compressor 460V 3Ph R22 7.9 RLA 48200 Capacity

$3,258.54

Unit

Available on backorder

Quantity

remove

add

Product Details

ZR48K5E-TFD-830 is a Copeland branded Scroll Compressor that is three phase with a voltage of 460 VAC. The compressor is designed to work in units that are compatible with a BTU output of 48200 and use R-22 refrigerant.

Attributes

Amps	7.9
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	48,200
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	3.87 in^3/Rev
Compressor Type	Scroll
Sound Level (dBA)	73
Compressor Housing	Hermetic
Liquid Temperature	85°F (29.44°C); 115°F (46.11°C)
Mass Flow (lbs/hr)	705 lbs./hr.; 800 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	17.1
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	58
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
