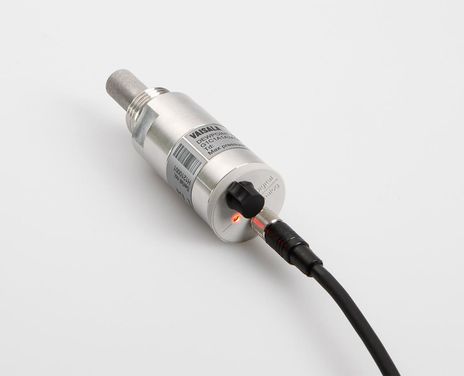

Vaisala DMT143 N1C1A1A3A0ASX

Dewpoint probe for desicant dryers l ½” NPT thread l 4-20mA l -80-20C dewpoint scaling l 3m cable l RS485 l Sintered stainless steel filter l manual

Vaisala DMT143 DRYCAP® Dew point Transmitter is a compact transmitter designed to monitor very dry conditions such as in desiccant dried compressed airlines, transformer and plastics drying applications, as well as in nitrogen purged systems.

Knowledge of the real dew point, not just system temperature, ensures high quality air in your system at all times and enables optimization of your dryer capacity. DMT143 autocalibration function provides excellent long-term stability,  and the Sensor Purge feature allows for rapid response from ambient to dry process conditions. The transmitter is resistant to compressor oil and most other chemicals. DMT143 can be installed directly into pressurized systems at 50 bara (725 psia) maximum pressure. Sampling cell adapters are also available for pressures up to 10bar.

A standard ISO 9001 factory calibration certificate is included in delivery. ISO 17025 accredited calibration is available upon request.

DMT143 is compatible with Vaisala Insight software (download for free at www.vaisala.com/insight) and the DM70 Hand-Held Dewpoint Meter.

DMT143 replaces the discontinued DMT142.
