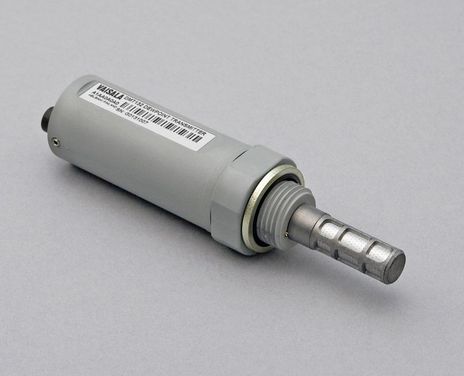

Vaisala DMT132 A1AA2A0M0

Dewpoint probe for refrigerant dryers l ½” ISO thread l 4-20mA l -20-40C dewpoint scaling l

Vaisala DMT132 HUMICAP® Dew point Transmitter is designed to monitor the functionality of refrigerant dryers. This transmitter has excellent long-term stability, and is resistant to compressor oil and most other chemicals. This instrument can be installed directly into pressurized systems at 0 … 20 bara (0 … 290 psia) maximum pressure. DMT132 comes with ISO G½ process connection.

Knowledge of the real dew point, not just system temperature, ensures high quality compressed air at all times and enables optimization of dryer capacity. DMT132 provides optimal performance with a dew point accuracy of ±1°C (±1.8°F) in the typical operating range of most refrigerant dryers. While the transmitter measures dew point accross the range of -20 … +50 °C (-4 … +122 °F), it’s optimized for use in the range of -3… 20°C (+26…+68°F).

DMT132 operates with a 4...20mA loop-powered signal, and is compatible with the DM70 Hand-Held Dewpoint Meter.

A standard ISO 9001 factory calibration certificate is included in delivery. ISO 17025 accredited calibration is available upon request.
