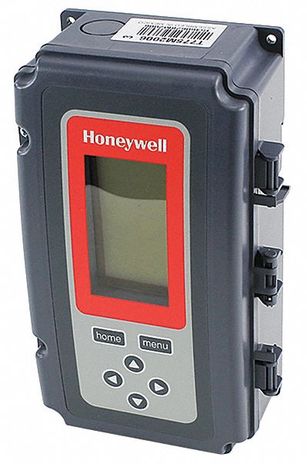

Resideo T775M2006

ELECTRONIC TEMPERATURE CONTROLLER WITH 2 TEMP INPUTS, 2 ANALOG OUTPUTS, 1 SENSOR INCLUDED.

The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.

Features

• Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
• Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
• Protect equipment from freezing or overheating on models with the modulating high or low limit control option
• Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
• Configure models with reset in a few easy steps
• Control floating actuators with floating outputs on select models
• Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
• Sensor 5002159-001 included with non-NEMA 4X models
• Sensor T775-SENS-WR included with NEMA-4X models

Specifications

• Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
• Type: Modulating-NEMA 1
• Analog Outputs: 2
• Relay Outputs: 0 SPDT
• Sensor Inputs : 2
• Voltage: 24 Vac or 120/240 Vac
• Frequency: 60 Hz
• Frequency: 50 Hz
• Relay Contact Ratings (24 Vac): 10.0A resistive
• Relay Contact Ratings (120 Vac):½ hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
• Relay Contact Ratings (240 Vac): ½ hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
• Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
• Sensor Element: 1097 ohms PTC at 77 F (25 C)
• Number of Sensor Inputs: 2
• Sensors Included: 50021579-001 (1)
• Maximum distance to sensor (ft): Up to 1,000 ft
• Setpoint Temperature Range (F): -40 F to 248 F
• Accuracy (F): ±1 F at 77 F
• Differential Temperature (F): 1 F to 150 F
• Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
• Analog Output Type: Electronic Series 90
