Turck

Turck RU300D-M30M-LIU8X2-H1141

SKU: CS5505251MPN: RU300D-M30M-LIU8X2-H1141Alternate Part #: 100039013UPC/EAN: 4047101596465
Turck RU300D-M30M-LIU8X2-H1141, RU300D-M30M-UPN8X2-H1141
Turck RU300D-M30M-LIU8X2-H1141, RU300D-M30M-UPN8X2-H1141
Turck RU300D-M30M-LIU8X2-H1141, RU300D-M30M-UPN8X2-H1141
Turck RU300D-M30M-LIU8X2-H1141, RU300D-M30M-UPN8X2-H1141
$837.63
Unit
Available on backorder
remove
add

Product Details

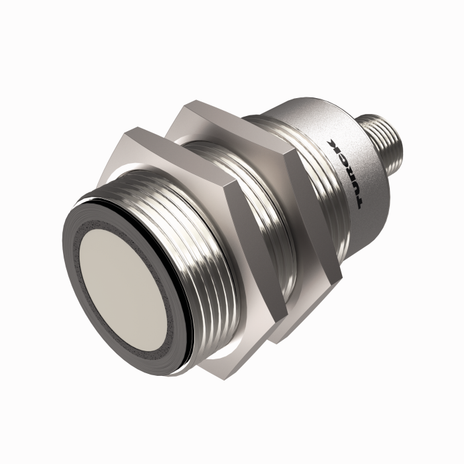

Ultrasonic Sensor

Diffuse Mode Sensor

  • Smooth sonic transducer face
  • M30 cylindrical design, potted
  • Connection via M12 × 1 male connector
  • Measuring range adjustable via teach-in
  • Temperature compensation
  • Blind zone: 30 cm
  • Range: 300 cm
  • Resolution: 1 mm
  • Adjustable switching hysteresis
  • Aperture angle of sonic cone: ± 5 °
  • 1 × switching output, PNP/NPN, IO-Link, teach-in, synchronization
  • 1 × analog output, 4…20 mA/0…10 V/switching output, PNP/NPN
  • NO/NC programmable
  • Transmission of process value and parametrization via IO-link
  • Adjustable operation as a retroreflective sensor

Attributes

Ambient Temperature -25…+70 °C
Approvals CE, cULus
Communication Protocol IO-Link

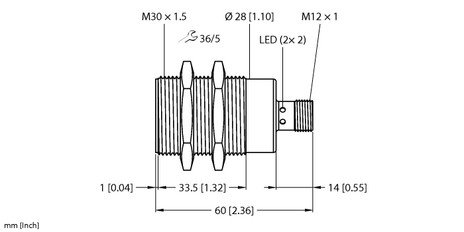

Construction Size M30 x 1.5
Current Output 4…20 mA
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27272803 -/- Ultrasonic proximity switch
Electrical Connection Connector, M12 × 1
Function Proximity
Housing Material Metal, CuZn, Nickel Plated
Operating Mode Time of Flight
Operating Voltage 18…30 VDC
Output Function PNP/NPN, analog output
Protection Class IP67
Radiation Direction straight
Range 300…3000 mm
Resolution 1 mm
Special Feature Synchronization, Teach input, Resistant to chemicals
Switching Element Function NO/NC
Voltage Output 0…10 V

Specifications

SKUCS5505251
MPNRU300D-M30M-LIU8X2-H1141
Alternate Part #100039013
UPC/EAN4047101596465
