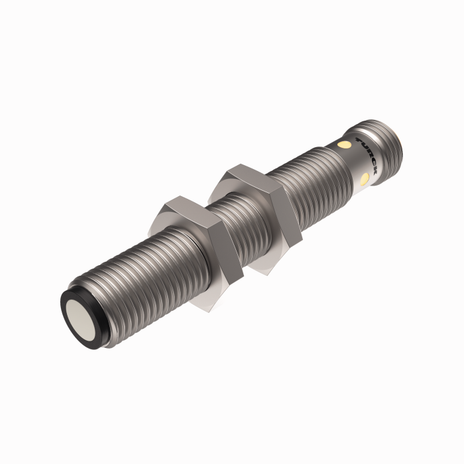

Turck RU20U-M12-AP6X2-H1141
SKU: CS3875267MPN: RU20U-M12-AP6X2-H1141Alternate Part #: 100000278UPC/EAN: 4047101436433
100000278 - DIF., BARREL, DC, CON. M12
$434.04
UnitAvailable on backorder
Product Details
Ultrasonic Sensor
Diffuse Mode Sensor
- Smooth sonic transducer face
- Cylindrical housing M12, potted
- Connection via M12 × 1 male connector
- Teach range adjustable via connection cable
- Blind zone: 2.5 cm
- Range: 20 cm
- Resolution: 0.5 mm
- Aperture angle of sonic cone: ±9 °
- Switching output, PNP, programmable via IO-Link
- NO/NC programmable
- IO-Link
Attributes
| Ambient Temperature | -10…+60 °C |
| Approvals | CE, cULus |
| Communication Protocol | IO-Link |

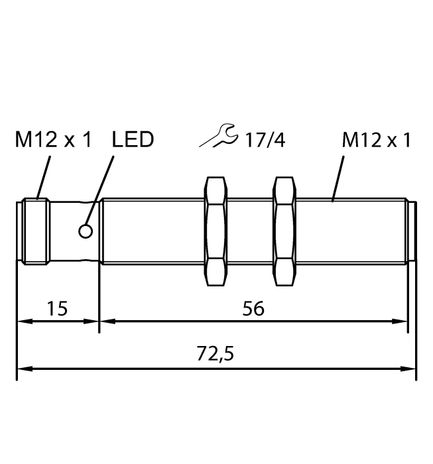

| Construction Size | M12 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27272803 -/- Ultrasonic proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Function | Proximity |
| Housing Material | Metal, CuZn, Chrome-plated |
| Operating Mode | Time of Flight |
| Operating Voltage | 10…30 VDC |
| Output Function | PNP |
| Protection Class | IP67 |
| Radiation Direction | straight |
| Range | 25…200 mm |
| Resolution | 0.5 mm |
| Switching Element Function | NO/NC |
Specifications
| SKU | CS3875267 |
|---|---|
| MPN | RU20U-M12-AP6X2-H1141 |
| Alternate Part # | 100000278 |
| UPC/EAN | 4047101436433 |
