Turck NI35U-CK40-ADZ30X2-B1131

SKU: CS204882MPN: NI35U-CK40-ADZ30X2-B1131Alternate Part #: 4280410UPC/EAN: 4047101094138

4280410 - UPROX, RECT., AC, CON. ⅞IN.

Turck BI15U-CK40-ADZ30X2-B1131/S949, NI35U-CK40-ADZ30X2-B1131, NI35U-CK40-ADZ30X2-B1131/S949
$251.04
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Extended Switching Distance

  • Rectangular, height 40 mm
  • Variable orientation of active face in 5 directions
  • Plastic, PBT‐GF30‐V0
  • Only use the included plastic clip BS4-CK40
  • Factor 1 for all metals
  • Increased switching distance
  • Protection class IP68
  • Large coverage
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • ⅞” male connector

Attributes

Ambient Temperature -30…+85 °C

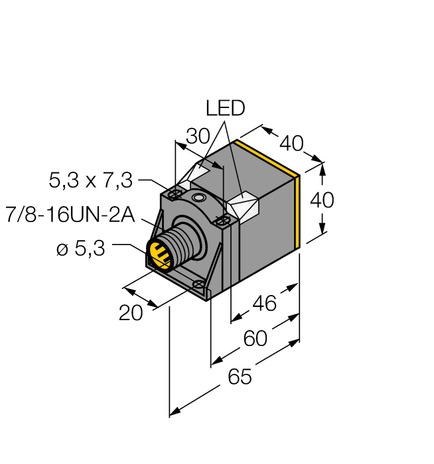

Construction Size 65 x 40 x 40 mm, CK40
Customs Tariff Number 85365080900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, ⅞″
Housing Material Plastic, PBT-GF20-V0, Black
Mounting Non-flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP68
Rated Switching Distance 35 mm
Special Feature uprox+, Sn +, Factor 1
Switching Frequency 0.010 kHz

Specifications

SKUCS204882
MPNNI35U-CK40-ADZ30X2-B1131
Alternate Part #4280410
UPC/EAN4047101094138
