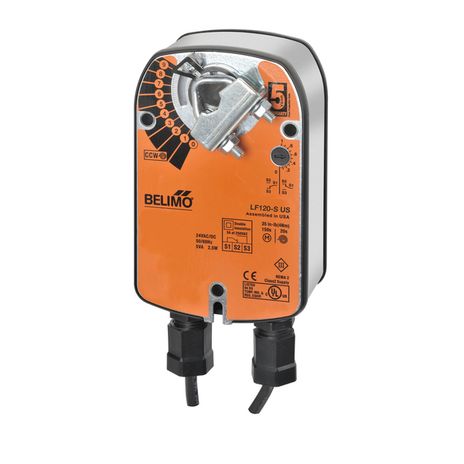

Belimo LF120-S US
SKU: CS546290MPN: LF120-S US
Damper Actuator, 35 in-lb [4 Nm], Spring return, AC 120 V, On/Off, 1 x SPDT
$285.57
UnitAvailable on backorder
Product Details
Damper Actuator, 35 in-lb [4 Nm], Spring return, AC 120 V, On/Off, 1 x SPDT
Attributes
| Control | On/Off |
| Auxillary Switch | 1 x SPDT |
| Fail-Safe | Spring Return |
| Torque | 35 in-lb |
| Nominal Voltage | AC 120 V |
| Transformer Sizing | 7.5 VA |
| Enclosure | UL Enclosure Type 2 |
| Power Supply | 120 VAC, ±10%, 50/60 Hz |
| Power Consumption In Operation | 5.5 W |
| Power Consumption In Rest Position | 3.5 W |
| Electrical Connection | (2) 18 GA appliance cables with ½” conduit connectors, 3 ft [1 m], |
| Overload Protection | electronic throughout 0…95° rotation |
| Angle Of Rotation | Max. 95°, |
| Direction Of Motion Motor | selectable with switch 0/1 |
| Position Indication | Mechanical |
| Running Time (Motor) | 75 s |
| Running Time Fail-Safe | <25 s |
| Ambient Humidity | max. 95% r.H., non-condensing |
| Ambient Temperature | -22…122°F [-30…50°C] |
| Storage Temperature | -40…176°F [-40…80°C] |
| Degree Of Protection Iec/En | IP54 |
| Degree Of Protection Nema/Ul | NEMA 2 |
| Connection | cable |
| Servicing | maintenance-free |
| Housing Material | galvanized steel |
| Nominal Voltage Dc | 120 V |
| Nominal Voltage Ac | 120 V |
| Noise Level, Motor | 50 dB(A) |
| Torque Motor | 35 in-lb [4 Nm] |
| Electrical Protection | actuators are double insulated |
| Quality Standard | ISO 9001 |
| Noise Level, Fail-Safe | 62 dB(A) |
| Agency Listing | cULus acc. To UL 873 and CAN/CSA C22.2 No. 24-93 |
| Shaft Diameter | ⅜…½” round, centers on ½” |
| Auxiliary Switch | 1 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, adjustable 0…95° |
| Fail-Safe Function | Spring return |
| Control Type Web | On/Off |
| Fail-Safe | YES |
| Running Time Selection | 20…49 s 50…79 s |
Specifications
| SKU | CS546290 |
|---|---|
| MPN | LF120-S US |
You may also like
Belimo LF120 US
$278.63Unit
Belimo LF24-S US
$295.97Unit
Belimo ZG-JSLA+LF120-S US
$502.23Unit
Belimo LF24-3-S US
$351.00Unit

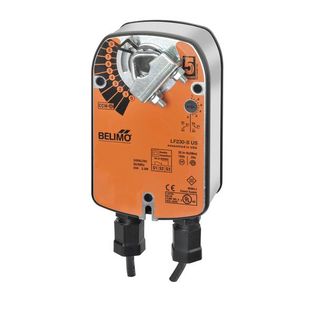

Belimo LF230-S US
