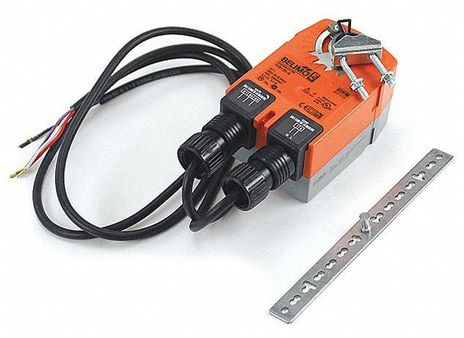

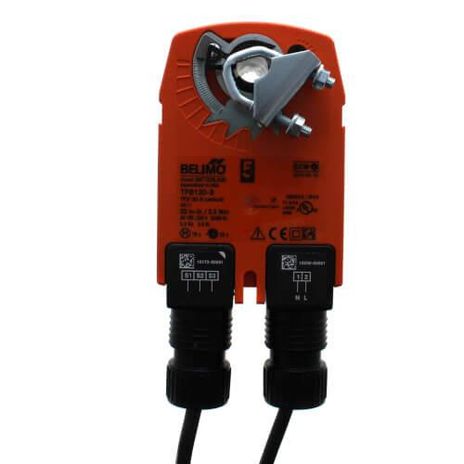

Belimo TFB120-S

Name: Belimo TFB120-S
Brand: Belimo
SKU: CS3649360
Price: 282.53 USD
Availability: InStock

SKU: CS3649360MPN: TFB120-S

Damper Actuator, 22 in-lb [2.5 Nm], Spring return, AC 100...240 V, On/Off, 1 x SPDT

$282.53

Unit

13 in stock

Quantity

remove

add

Documents

Belimo TFB120-S Data Sheet
Belimo TFB120, TFB120-S, TFB120-SR, TFB24, TFB24-3, TFB24-3-S, TFB24-MFT, TFB24-MFT-S, TFB24-S, TFB24-SR, TFB24-SR-S, TFCB120-S, TFCX120-S, TFLB120, TFLB24 Installation Instructions

Product Details

Damper Actuator, 22 in-lb [2.5 Nm], Spring return, AC 100...240 V, On/Off, 1 x SPDT

Attributes

Control	On/Off
Auxillary Switch	1 x SPDT
Fail-Safe	Spring Return
Torque	22 in-lb
Nominal Voltage	AC 100…240 V
Transformer Sizing	5 VA
Enclosure	UL Enclosure Type 2
Power Supply	100…240 VAC, -15% / +10%, 50/60 Hz
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	1.3 W
Electrical Connection	(2) 18 GA appliance cables with ½” conduit connectors, 3 ft [1 m],
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	Max. 95°, adjustable with mechanical stop
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	75 s
Running Time Fail-Safe	<25 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP42
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	UL94-5VA
Nominal Voltage Ac	100…240 V
Noise Level, Motor	50 dB(A)
Torque Motor	22 in-lb [2.5 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter	¼…½” round, centers on ½”
Auxiliary Switch	1 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, adjustable 0…95°
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
