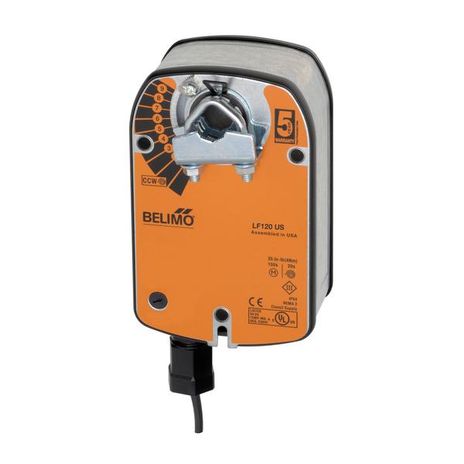

Belimo LF120 US

Name: Belimo LF120 US
Brand: Belimo
SKU: CS965624
Price: 278.63 USD
Availability: OutOfStock

SKU: CS965624MPN: LF120 US

Damper Actuator, 35 in-lb [4 Nm], Spring return, AC 120 V, On/Off

$278.63

Unit

Available on backorder

Quantity

remove

add

Documents

Damper Actuator, 35 in-lb [4 Nm], Spring return, AC 120 V, On/Off

Control	On/Off
Fail-Safe	Spring Return
Torque	35 in-lb
Nominal Voltage	AC 120 V
Transformer Sizing	7.5 VA
Enclosure	UL Enclosure Type 2
Power Supply	120 VAC, ±10%, 50/60 Hz
Power Consumption In Operation	5.5 W
Power Consumption In Rest Position	3.5 W
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	Max. 95°,
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanical
Running Time (Motor)	75 s
Running Time Fail-Safe	<25 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	galvanized steel
Nominal Voltage Dc	120 V
Nominal Voltage Ac	120 V
Noise Level, Motor	50 dB(A)
Torque Motor	35 in-lb [4 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. To UL 873 and CAN/CSA C22.2 No. 24-93
Shaft Diameter	⅜…½” round, centers on ½”
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
Running Time Selection	2.5…19 s
