All ProductsTurck

Turck NCT8-M12-IOL-H1141

SKU: CS5390423MPN: NCT8-M12-IOL-H1141Alternate Part #: 100027493UPC/EAN: 4047101539059
Turck NCT8-M12-IOL-H1141
Turck NCT8-M12-IOL-H1141
Turck NCT8-M12-IOL-H1141
Turck NCT8-M12-IOL-H1141
$268.39
Unit
Available on backorder
remove
add

Product Details

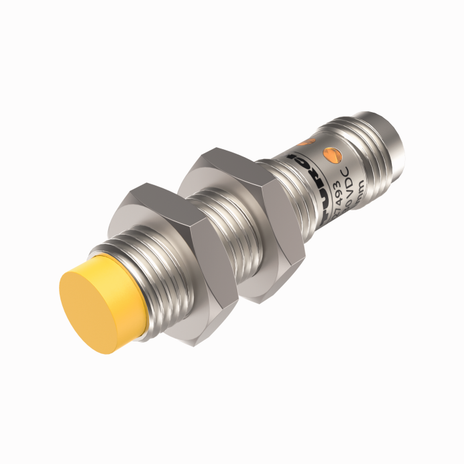

Capacitive Sensor

  • Detection of metallic and non-metallic objects
  • Detection of liquids, powders and solid materials
  • All functions can be parameterized via IO-Link
  • Three different types of object teaching (one value, two value, dynamic) possible
  • Available counting function whose content can be called up via IO-Link
  • Switching status indicated by four LEDs arranged all around the device
  • M12 × 1 male connector, 4-pin
  • Robust, compact housing made of nickel-plated brass
  • M12 threaded design, non-flush, switching distance \= 8 mm

Attributes

Ambient Temperature -25…+70 °C
Communication Protocol IO-Link
Construction Size M12 x 1
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270102 -/- Capacitive proximity switch
Electrical Connection Connector, M12 × 1
Function Level detection
Housing Material Metal, Nickel-Plated Brass
Operating Voltage 18…30 VDC
Output Function NO/NC programmable, PNP/NPN
Protection Class IP67
Rated Switching Distance 8 mm

Specifications

SKUCS5390423
MPNNCT8-M12-IOL-H1141
Alternate Part #100027493
UPC/EAN4047101539059
