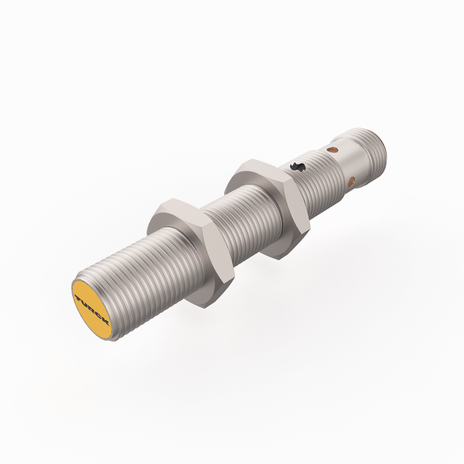

Turck BC3-M12-AP6X-H1141
SKU: CS3787376MPN: BC3-M12-AP6X-H1141Alternate Part #: 2601011UPC/EAN: 4047101261387
2601011 - C, BARREL-FL, GEN., GEN.
$403.83
UnitAvailable on backorder
Product Details
Capacitive Sensor

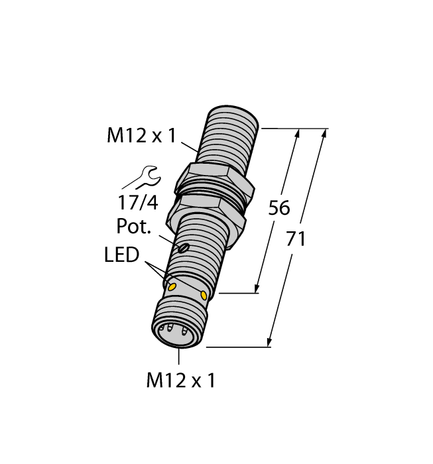

- M12 × 1 threaded barrel
- Chrome-plated brass
- Fine adjustment via potentiometer
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 × 1 connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | UL |
| Construction Size | M12 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270102 -/- Capacitive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, CuZn, Chrome-plated |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 3 mm |
Specifications
| SKU | CS3787376 |
|---|---|
| MPN | BC3-M12-AP6X-H1141 |
| Alternate Part # | 2601011 |
| UPC/EAN | 4047101261387 |
