All ProductsTurck

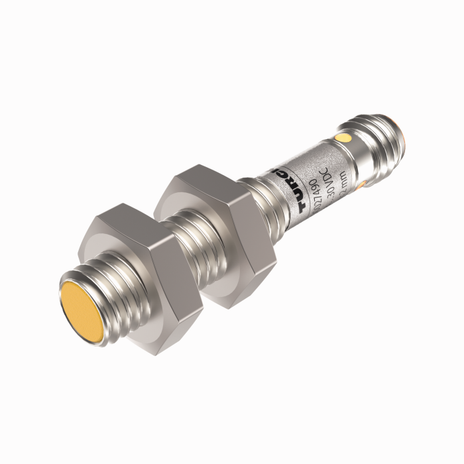

Turck BCT2-M08-IOL-V1131

SKU: CS5389856MPN: BCT2-M08-IOL-V1131Alternate Part #: 100027490UPC/EAN: 4047101539028
Turck BCT2-M08-IOL-V1131
Turck BCT2-M08-IOL-V1131
Turck BCT2-M08-IOL-V1131
Turck BCT2-M08-IOL-V1131
$294.03
Unit
Available on backorder
remove
add

Product Details

Capacitive Sensor

  • Detection of metallic and non-metallic objects
  • Detection of liquids, powders and solid materials
  • All functions can be parameterized via IO-Link
  • Three different types of object teaching (one value, two value, dynamic) possible
  • Available counting function whose content can be called up via IO-Link
  • Switching status indicated by four LEDs arranged all around the device
  • Male connector, M8 × 1, 3-pin
  • Robust, compact housing made of nickel-plated brass
  • M8 threaded design, flush, switching distance \= 2 mm

Attributes

Ambient Temperature -25…+70 °C
Communication Protocol IO-Link

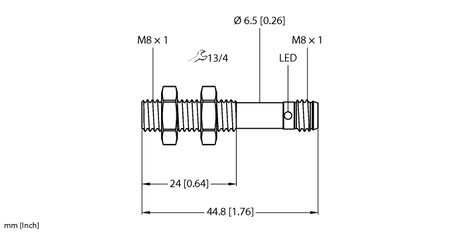

Construction Size M8 x 1
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270102 -/- Capacitive proximity switch
Electrical Connection Connector, M8 × 1
Function Level detection
Housing Material Metal, Nickel-Plated Brass
Operating Voltage 18…30 VDC
Output Function NO/NC programmable, PNP/NPN
Protection Class IP67
Rated Switching Distance 2 mm

Specifications

SKUCS5389856
MPNBCT2-M08-IOL-V1131
Alternate Part #100027490
UPC/EAN4047101539028
