Eaton 13100RS9035
SKU: CS5018799MPN: 13100RS9035UPC/EAN: 782114629949

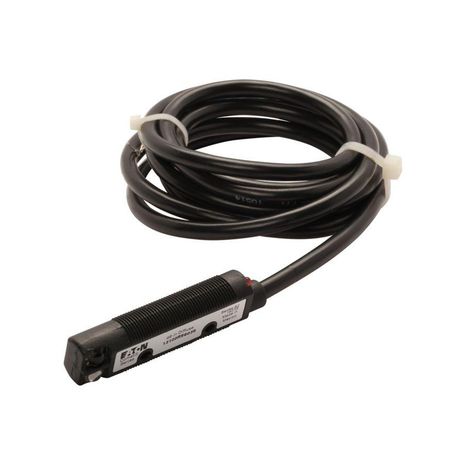

Eaton Comet 18mm tubular photoelectric sensor
$511.06
UnitAvailable on backorder
Product Details
Eaton Comet 18mm tubular photoelectric sensor, Diffuse Reflective, 48 in range, Right Angle, Output ON, 6.6 ft, 300 mA AC/DC at 20-264 Vac/15-30 Vdc, PVC, AC: L1 switched, DC: NPN open collector, 20-264 Vac 50/60 Hz, 15-30 Vdc (NPN)
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Contact Configuration | AC: L1 switched DC: NPN open collector |
| Contact Rating | 300 mA AC/DC at 20-264 Vac/15-30 Vdc |
| Enclosure Material | Polyurethane foam (RIM) |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K |
| Input Voltage | 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN) |
| Led Indicator | Output ON |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Latching short circuit |
| Sensor Type | Diffuse reflective |
| Type | Photoelectric Sensor |
Specifications
| SKU | CS5018799 |
|---|---|
| MPN | 13100RS9035 |
| UPC/EAN | 782114629949 |
