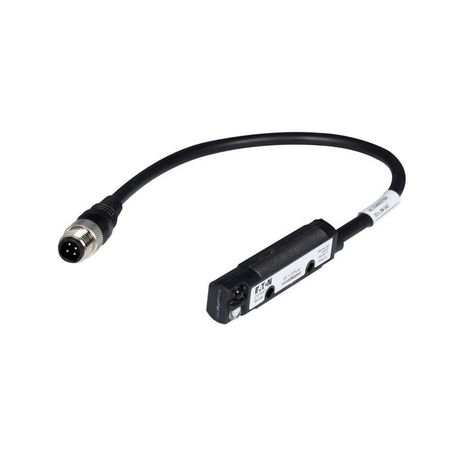

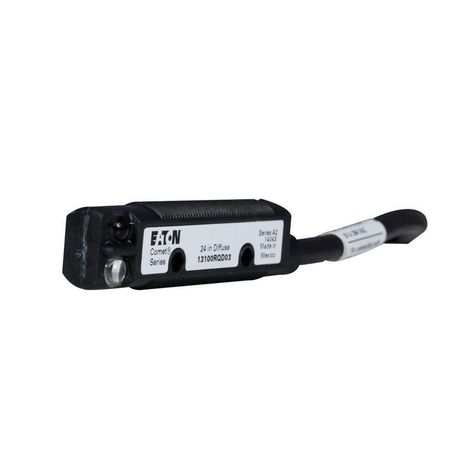

Eaton 13100RQD03

Name: Eaton 13100RQD03
Brand: Eaton
SKU: CS981334
Price: 490.54 USD
Availability: OutOfStock

SKU: CS981334MPN: 13100RQD03Alternate Part #s: 13100RQD03EAT-13100RQD03UPC/EAN: 782113843537

Eaton Comet 18mm tubular photoelectric sensor

Eaton 13100R6513, 13100R6517, 13100RQD07

Product Details

Eaton Comet 18mm tubular photoelectric sensor, Diffuse Reflective, Right Angle, Output ON, Dual key micro, 300 mA AC/DC at 20-264 Vac/15-30 Vdc, 4 pin, AC: L1 switched, DC: NPN open collector, 20-264 Vac 50/60 Hz, 15-30 Vdc (NPN)

Attributes

Connection	Dual key micro
Contact Configuration	AC: L1 switched DC: NPN open collector
Contact Rating	300 mA AC/DC at 20-264 Vac/15-30 Vdc
Enclosure Material	Polyurethane foam (RIM)
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
Input Voltage	20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN)
Led Indicator	Output ON
Maximum Ac Current	300 mA
Maximum Dc Current	300 mA
Number Of Pins	4.0000
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Latching short circuit
Sensor Type	Diffuse reflective
