Eaton 10316H320
SKU: CS5018198MPN: 10316H320UPC/EAN: 782113229218

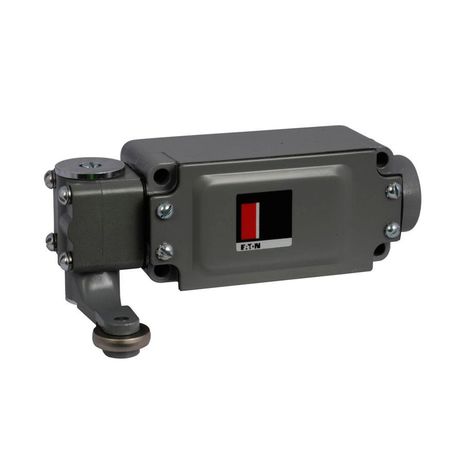

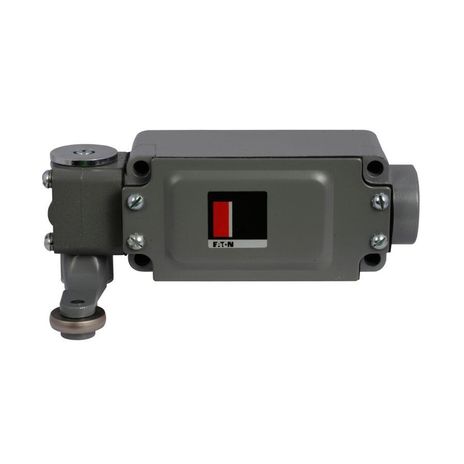

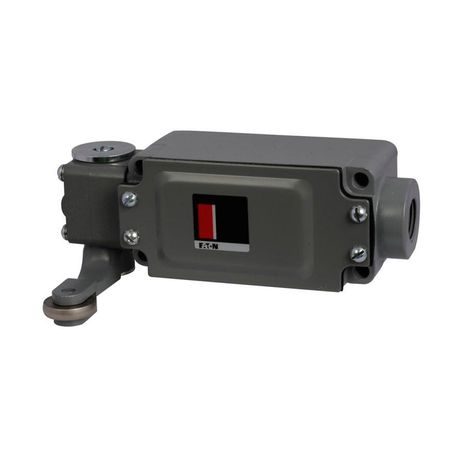

Eaton 10316 hazardous location limit switch
Contact us for pricing and availability
Product Details
Eaton 10316 hazardous location limit switch, Type F Special Purpose Limit Switch, Side Rotary, Type F, Die Cast Zinc enclosure, 40A max AC, 0.5A max DC, 2NO-2NC, AC: Make 40A Break 15A at 120Vac DC: Break 0.5A, Screw Terminals, 2NO-2NC
Attributes
| Connection | Screw terminal |
| Contact Configuration | 2 NO-2 NC |
| Contact Rating | AC: Make 40A Break 15A at 120Vac DC: Break 0.5A |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 4 |
| Maximum Ac Current | 40 A |
| Maximum Dc Current | 0.5 A |
| Operating Temperature Max | 180 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 0 FAH |
| Operating Temperature Min Uom | FAH |
| Switch Type | Type F Side rotary |
Specifications
| SKU | CS5018198 |
|---|---|
| MPN | 10316H320 |
| UPC/EAN | 782113229218 |
