Eaton 10316H2178
SKU: CS376701MPN: 10316H2178UPC/EAN: 782113452142

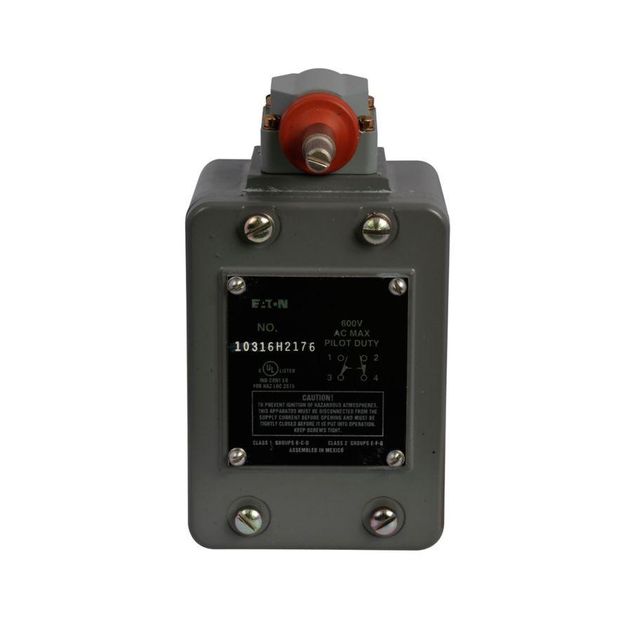

Eaton 10316 hazardous location limit switch
Contact us for pricing and availability
Product Details
Eaton 10316 hazardous location limit switch, Side Rotary, Die Cast Aluminum enclosure, 5A max AC, 0.1A max DC, 5A at 600Vac, 0.1A at 120Vdc, Screw Terminals, 2NC
Attributes
| Connection | Screw terminal |
| Contact Configuration | 2 NC |
| Contact Rating | 5A at 600Vac, 0.1A at 120Vdc |
| Enclosure Material | Die cast aluminum |
| Environmental Rating | NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG, NEMA 1, NEMA 4, NEMA 13 |
| Maximum Ac Current | 5 A |
| Maximum Dc Current | 0.1 A |
| Operating Temperature Max | 200 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -20 FAH |
| Operating Temperature Min Uom | FAH |
| Switch Type | Side rotary |
Specifications
| SKU | CS376701 |
|---|---|
| MPN | 10316H2178 |
| UPC/EAN | 782113452142 |
