Eaton LSM-11S-LA

Name: Eaton LSM-11S-LA
Brand: Eaton
SKU: CS4896312
Price: 168.14 USD
Availability: OutOfStock

SKU: CS4896312MPN: LSM-11S-LAUPC/EAN: 786685392301

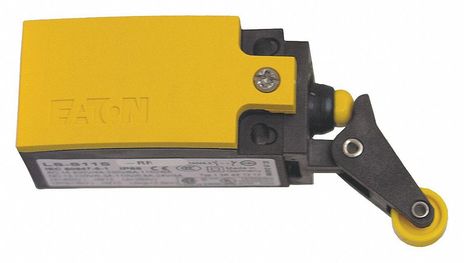

Eaton LS-Titan miniature DIN limit switch

Eaton LS-S11-230AFT-ZBZ-X, LS-S11S-LA, LS-S11S-LB, LS-S11S-LS, LS-S11S-OR, LS-S11S-RLA30, LS-S11S-RLA40, LS-S11S-RLA40R, LSM-11S-LA, LSM-11S-RRM, M12A5

Product Details

Eaton LS-Titan Miniature DIN Limit Switch, Angled Roller Lever, Die Cast Zinc enclosure, 6A max AC, 3A max DC, 1NO-1NC, Snap Action, Positive Opening, 6A at 240Vac, 3A at 24Vdc, Cage Clamps

Attributes

Connection	Cage clamps
Contact Configuration	1 NO-1 NC, snap action, positive opening
Contact Rating	6A at 240Vac, 3A at 24Vdc
Enclosure Material	Die cast zinc
Environmental Rating	IP66, IP67
Maximum Ac Current	6 A
Maximum Dc Current	3 A
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Switch Type	Angled roller lever
Type	LS-Titan
