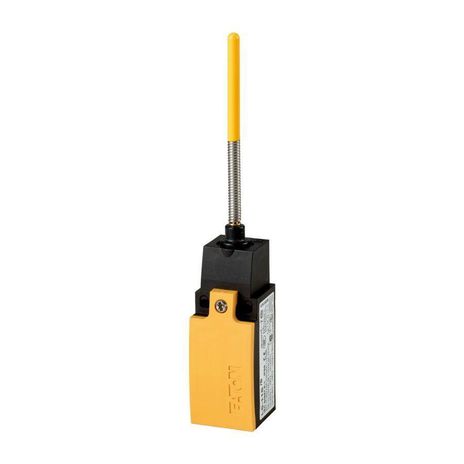

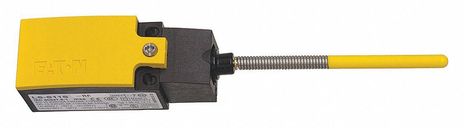

Eaton LSM-11S-S

Name: Eaton LSM-11S-S
Brand: Eaton
SKU: CS4896317
Price: 196.00 USD
Availability: OutOfStock

SKU: CS4896317MPN: LSM-11S-SUPC/EAN: 786685392240

Eaton LS-Titan miniature DIN limit switch

Product Details

Eaton LS-Titan Miniature DIN Limit Switch, Wobble Stick, Spring Rod, Die Cast Zinc enclosure, 6A max AC, 3A max DC, 1NO-1NC, Snap Action, Positive Opening, 6A at 240Vac, 3A at 24Vdc, Cage Clamps

Attributes

Connection	Cage clamps
Contact Configuration	1 NO-1 NC, snap action, positive opening
Contact Rating	6A at 240Vac, 3A at 24Vdc
Enclosure Material	Die cast zinc
Environmental Rating	IP66, IP67
Maximum Ac Current	6 A
Maximum Dc Current	3 A
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Switch Type	Wobble stick Spring coil
Type	LS-Titan
