Eaton LSM-11

Name: Eaton LSM-11
Brand: Eaton
SKU: CS4896309
Price: 130.11 USD
Availability: OutOfStock

SKU: CS4896309MPN: LSM-11UPC/EAN: 786685520650

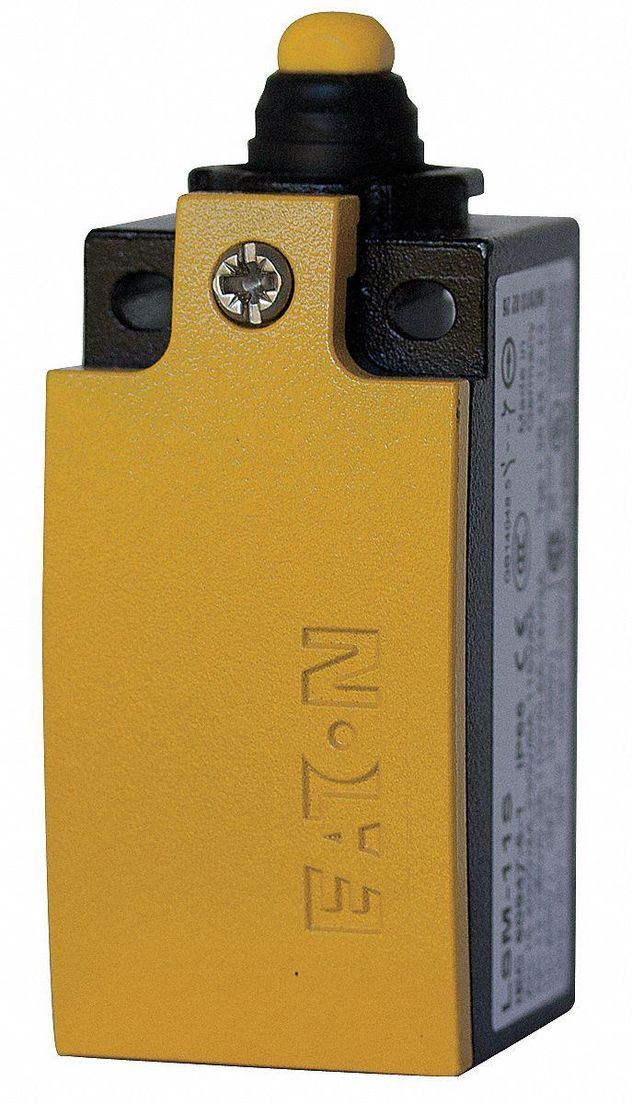

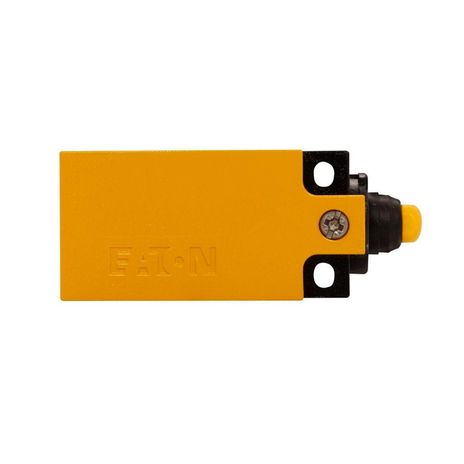

Eaton LS-Titan miniature DIN limit switch

Product Details

Eaton LS-Titan Miniature DIN Limit Switch, Top Push Plunger, Die Cast Zinc enclosure, 6A max AC, 3A max DC, 1NO-1NC, Slow Make Before Break, Positive Opening, 6A at 240Vac, 3A at 24Vdc, Cage Clamps, ±0.02mm accuracy

Attributes

Accuracy	±0.02mm
Connection	Cage clamps
Contact Configuration	1 NO-1 NC, slow make before break, positive opening
Contact Rating	6A at 240Vac, 3A at 24Vdc
Enclosure Material	Die cast zinc
Environmental Rating	IP66, IP67
Maximum Ac Current	6 A
Maximum Dc Current	3 A
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Switch Type	Top push plunger
Type	LS-Titan
