All ProductsEaton

Eaton LS-S11S-P

SKU: CS4896212MPN: LS-S11S-PUPC/EAN: 786685392776

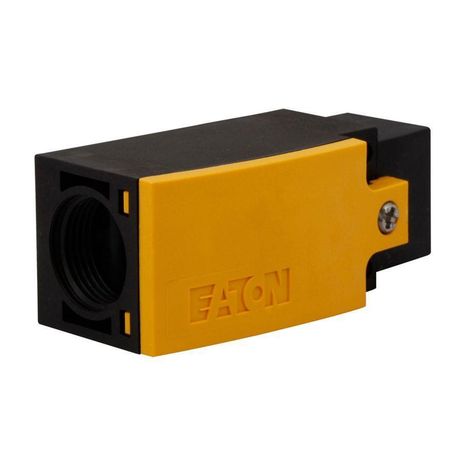

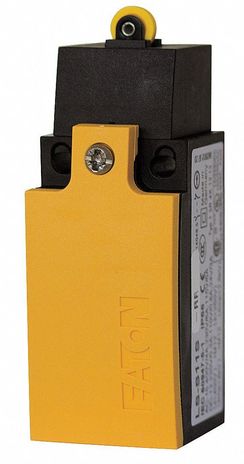

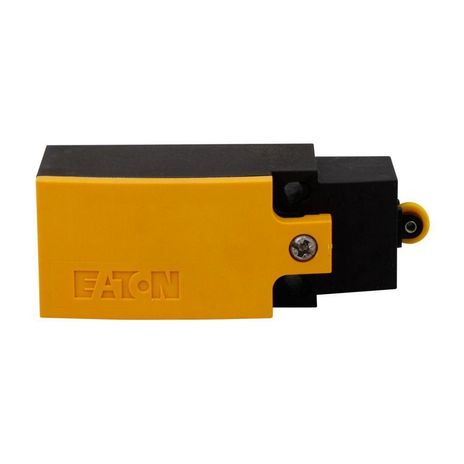

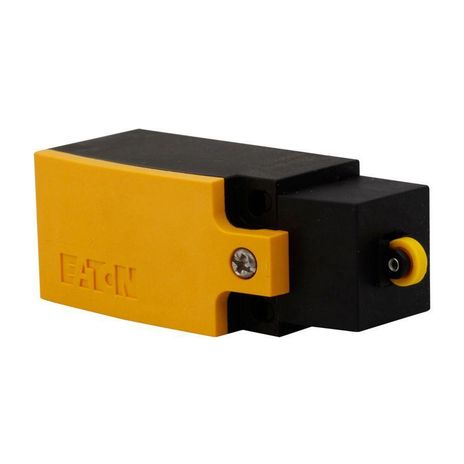

Eaton LS-Titan miniature DIN limit switch

Eaton LS-S11S-P
Eaton LS-S11S-P
Eaton LS-S11S-P
Eaton LS-S11S-P
Eaton LS-S11S-P
Eaton LS-S11S-P
Contact us for pricing and availability

Product Details

Eaton Safety Switch, LS-Titan, Top push roller plunger, Screw Terminals, 6A at 230 Vac, 3A at 24 Vdc, Plus or minus 0.02mm, 99.97 cm/sec, 1NO-1NC with positive opening contact

Attributes

Accuracy ±0.02mm
Actuator Top push roller plunger
Connection Screw terminal
Contact Configuration 1 NO-1 NC with positive opening contact
Contact Rating 6A at 230 Vac, 3A at 24 Vdc
Enclosure Material Plastic
Environmental Rating IP66, IP67
Maximum Ac Current 6 A at 230 Vac
Maximum Dc Current 3 A at 24 Vdc
Operating Speed 99.97 cm/sec
Operating Temperature Max 158 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min -13 FAH
Operating Temperature Min Uom FAH
Series LS-Titan
Type LS-Titan

Specifications

SKUCS4896212
MPNLS-S11S-P
UPC/EAN786685392776
