Eaton LS-S11-F

Name: Eaton LS-S11-F
Brand: Eaton
SKU: CS4896199
Price: 76.46 USD
Availability: OutOfStock

SKU: CS4896199MPN: LS-S11-FUPC/EAN: 786685503639

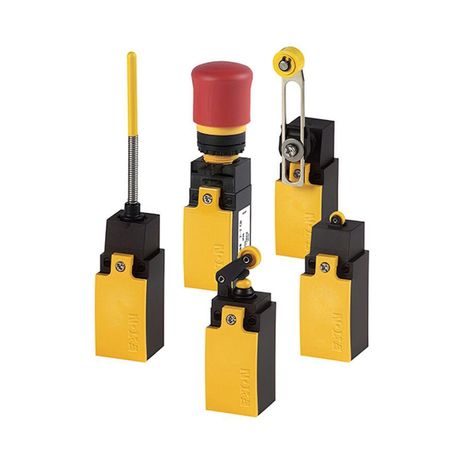

Eaton LS-Titan miniature DIN limit switch

Eaton LS-11S-S, LS-11S-ZB, LS-S02-LA, LS-S02-LB, LS-S02-LS, LS-S02-OR, LS-S02-P, LS-S02-RL, LS-S02-RLA, LS-S02-RLA30, LS-S02-RLA40, LS-S02-RLA40R, LS-S02-RR, LS-S02-RRM, LS-S02-S

Product Details

Eaton LS-Titan Miniature DIN Limit Switch, Top Push Plunger, Polyamide PA66-GF25 enclosure, 6A max AC, 3A max DC, 1NO-1NC, Slow Make Break, Positive Opening, 6A at 240Vac, 3A at 24Vdc, Screw Terminals, ±0.02mm accuracy

Attributes

Accuracy	±0.02mm
Connection	Screw terminal
Contact Configuration	1 NO-1 NC, slow make break, positive opening
Contact Rating	6A at 240Vac, 3A at 24Vdc
Enclosure Material	Polyamide PA66-GF25
Environmental Rating	IP66, IP67
Maximum Ac Current	6 A
Maximum Dc Current	3 A
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Switch Type	Top push plunger
Type	LS-Titan
