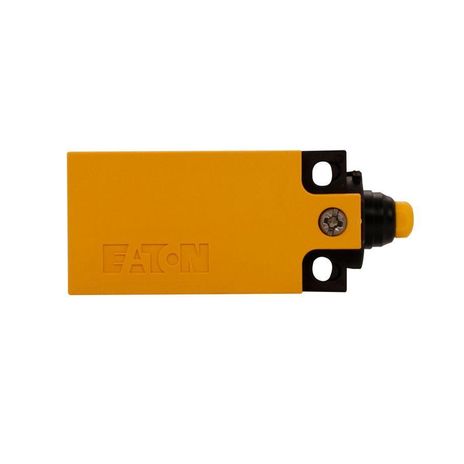

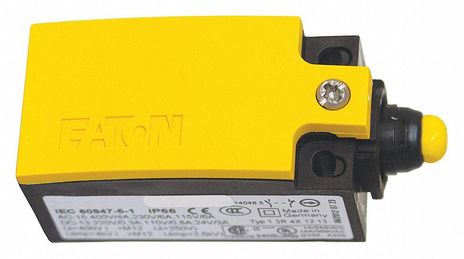

Eaton LS-S20A
SKU: CS4896223MPN: LS-S20AUPC/EAN: 786685392509
Eaton LS-Titan miniature DIN limit switch
Contact us for pricing and availability
Product Details
Eaton Safety Switch Body, LS-Titan, Screw Terminals, 6A at 230 Vac, 3A at 24 Vdc, 2NO with slow make/break, Plus or minus 0.02mm, 99.97 cm/sec, 2NC with positive opening contacts
Attributes
| Accuracy | ±0.02mm |
| Connection | Screw terminal |
| Contact Configuration | 2 NC with positive opening contacts |
| Contact Rating | 6A at 230 Vac, 3A at 24 Vdc |
| Enclosure Material | Plastic |
| Environmental Rating | IP66, IP67 |
| Maximum Ac Current | 6 A at 230 Vac |
| Maximum Dc Current | 3 A at 24 Vdc |
| Operating Speed | 99.97 cm/sec |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Output | 2 NO with slow make/break |
| Series | LS-Titan |
| Type | LS-Titan |
Specifications
| SKU | CS4896223 |
|---|---|
| MPN | LS-S20A |
| UPC/EAN | 786685392509 |
