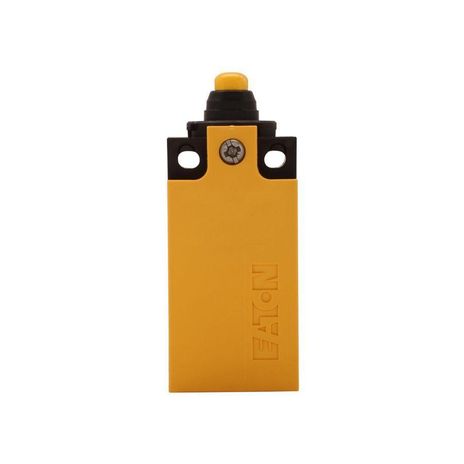

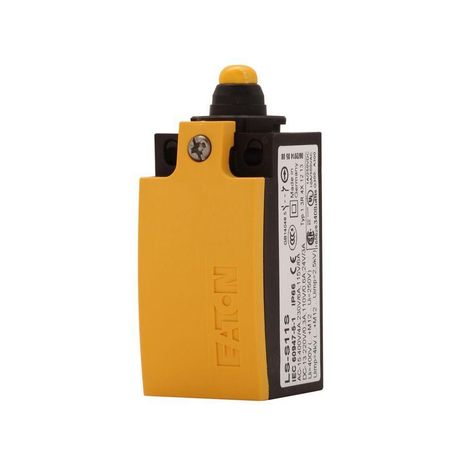

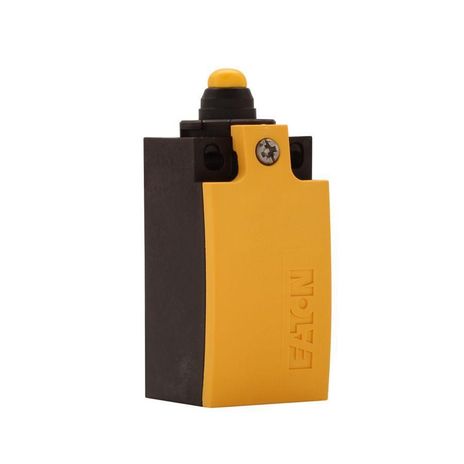

Eaton LS-S11S
SKU: CS1000316MPN: LS-S11SUPC/EAN: 786685392486
Eaton LS-Titan miniature DIN limit switch
$55.76
Unit1 Unit Available at Factory - Ships Same/Next Business Day
Product Details
Eaton Eaton Safety Switch Body, LS-Titan, Screw Terminals, 6A at 230 Vac, 3A at 24 Vdc, Plus or minus 0.02mm, 99.97 cm/sec, 1NO-1NC with positive opening contact
Attributes
| Accuracy | ±0.02mm |
| Connection | Screw terminal |
| Contact Configuration | 1 NO-1 NC with positive opening contact |
| Contact Rating | 6A at 230 Vac, 3A at 24 Vdc |
| Enclosure Material | Plastic |
| Environmental Rating | IP66, IP67 |
| Maximum Ac Current | 6 A at 230 Vac |
| Maximum Dc Current | 3 A at 24 Vdc |
| Operating Speed | 99.97 cm/sec |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Series | LS-Titan |
| Type | LS-Titan |
Specifications
| SKU | CS1000316 |
|---|---|
| MPN | LS-S11S |
| UPC/EAN | 786685392486 |
You may also like
Eaton LS-S11S-P
Contact us for pricing and availability
Eaton LS-S11
Contact us for pricing and availability
Eaton LS-S11S-RLA
Contact us for pricing and availability
Eaton LS-S11S-S
Contact us for pricing and availability
Eaton LS-S11S-RRM
Contact us for pricing and availability

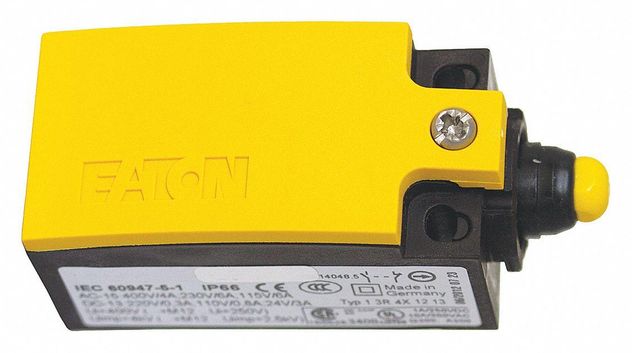

Eaton LS-S20A
