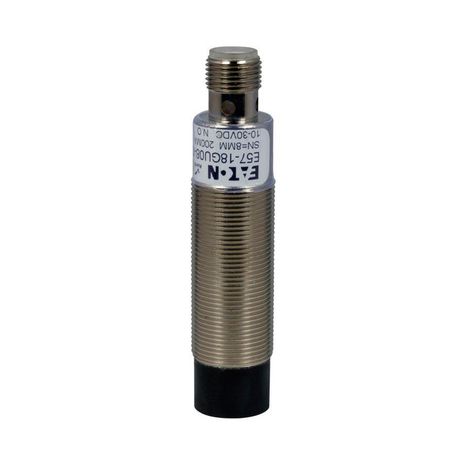

Eaton E57-18GU08-GDB

Name: Eaton E57-18GU08-GDB
Brand: Eaton
SKU: CS4872717
Price: 112.72 USD
Availability: OutOfStock

SKU: CS4872717MPN: E57-18GU08-GDBUPC/EAN: 782114665114

Eaton E57 inductive proximity sensor

Product Details

Eaton Inductive Global Proximity Sensor, E57, 8 mm range, Straight, Unshielded, Output ON, M12, 100 mA at 10-30 Vdc, 4 pin, \<1.0% sensing range, PNP open collector, NO, 10-30 Vdc

Attributes

Accuracy	< 1.0% sensing range
Actuator Function	Unshielded
Connection	M12
Contact Configuration	PNP open collector, NO
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Maximum Dc Current	100 mA
Number Of Pins	4.0000
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit
Series	E57
Type	Inductive Global Proximity Sensor
