Eaton E57-18GU08-G

Name: Eaton E57-18GU08-G
Brand: Eaton
SKU: CS402121
Availability: OutOfStock

SKU: CS402121MPN: E57-18GU08-GUPC/EAN: 782114288801

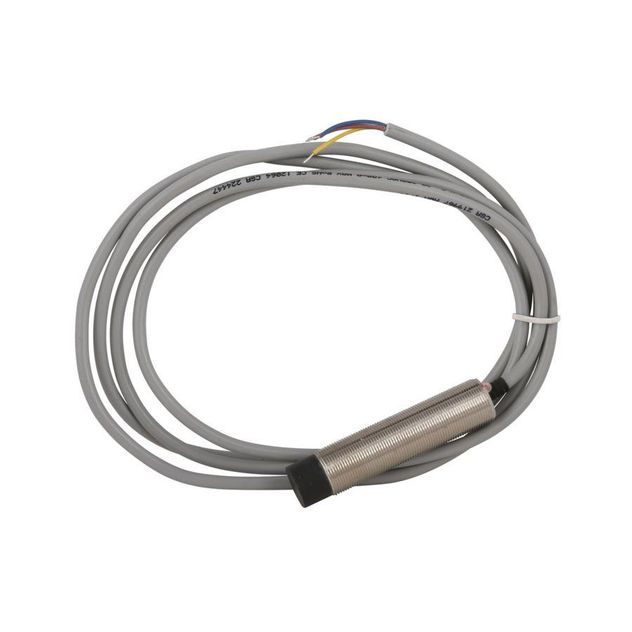

Eaton E57 inductive proximity sensor

Eaton E57-18GU08-D, E57-18GU08-D1, E57-18GU08-D1DB, E57-18GU08-D3, E57-18GU08-D5, E57-18GU08-DDB, E57-18GU08-G

Product Details

Eaton Inductive Global Proximity Sensor, E57, 8 mm range, Straight, Unshielded, Output ON, 6.6 ft, 100 mA at 10-30 Vdc, \<1.0% sensing range, PVC, PNP open collector, NO, 10-30 Vdc

Attributes

Accuracy	< 1.0% sensing range
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	PNP open collector, NO
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Maximum Dc Current	100 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit
Series	E57
Temperature Rating	-13 to 158 °F
Type	E57
